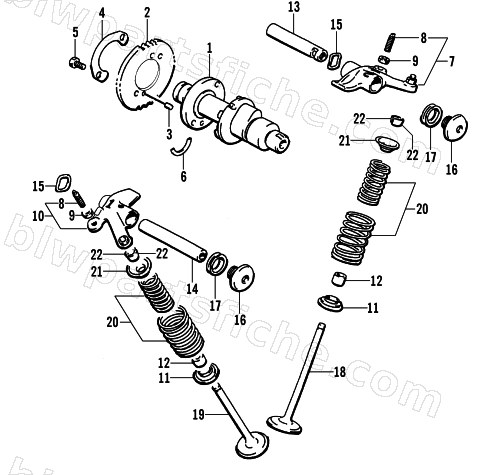

CAMSHAFT/VALVE ASSEMBLY
2002 375 AUTOMATIC TRANSMISSION (4X4 )
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3403-026 | CAMSHAFT COMP | 1 | $477.95 | |
| 2 | 3402-611 | SPROCKET, CAM SHAFT | 1 | $90.95 | |
| 3 | 3423-047 | PIN,M5X8 | 1 | $3.95 | |
| 4 | 3423-073 | WASHER, SPROCKET | 1 | $3.57 | |
| 5 | 3423-886 | BOLT,SPROCKET | 1 | $3.95 | |
| 6 | 3423-071 | C RING,M22 | 1 | $4.40 | |
| 7 | 3402-805 | ARM,VALVE ROCKER INT. | 1 | $125.95 | |
| 8 | 3423-075 | SCREW, TAPPET ADJUSTING | 1 | $17.87 | |
| 9 | 3423-076 | NUT, TAPPET ADJUSTING | 1 | $3.57 | |
| 10 | 3402-139 | ARM, VALVE ROCKER, EXHAUST | 1 | $169.95 | |
| 11 | 3402-148 | SEAT, VALVE SPRING | 1 | $13.73 | |
| 12 | 3402-078 | OIL SEAL,M5 | 1 | $20.63 | |
| 13 | 3402-140 | SHAFT, VALVE ROCKER ARM, IN | 1 | $56.95 | |
| 14 | 3402-141 | SHAFT, VALVE ROCKER ARM, EX | 1 | $58.95 | |
| 15 | 3423-031 | WASHER, WAVE,12MM | 1 | $1.78 | |
| 16 | 3402-040 | PLUG,14MM | 1 | $6.20 | |
| 17 | 3402-012 | GASKET, OIL PLUG,M13.8X18.8X0.4 | 1 | $10.97 | |
| 18 | 3402-725 | VALVE, INTAKE | 1 | $85.95 | |
| 19 | 3402-143 | VALVE, EXHAUST | 1 | $118.95 | |
| 20 | 3402-144 | SPRING, VALVE | 1 | $33.95 | |
| 21 | 3423-541 | RETAINER, SPRING | 1 | $20.63 | |
| 22 | 3402-147 | COTTER, VALVE | 1 | $4.40 |
