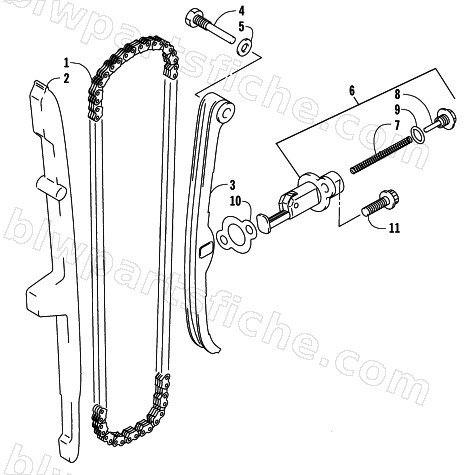

2002 Arctic Cat 375 AUTOMATIC TRANSMISSION (4X4 ) — CAM CHAIN ASSEMBLY
2002 375 AUTOMATIC TRANSMISSION (4X4 )
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3402-281 | CHAIN,CAMSHAFT DRIVE | 1 | $163.95 | |
| 2 | 3402-612 | GUIDE, CAM CHAIN | 1 | $112.95 | |
| 3 | 3402-613 | TENSIONER, CAM CHAIN | 1 | $104.95 | |
| 4 | 3423-074 | BOLT, CAMSHAFT CHAIN TENSIONER | 1 | $6.34 | |
| 5 | 3402-436 | WASHER | 1 | $1.92 | |
| 6 | 3402-614 | ADJUSTER ASSY, TENSIONER | 1 | $169.95 | |
| 7 | 3423-484 | SPRING | 1 | $13.73 | |
| 8 | 3423-285 | PIN,M2.5X11.8 | 1 | $3.71 | |
| 9 | 3423-286 | O RING | 1 | $8.21 | |
| 10 | 3402-287 | GASKET,TENSIONER ADJUSTER | 1 | $4.95 | |
| 11 | 3007-674 | BOLT-6X20 | 1 | $3.85 |
