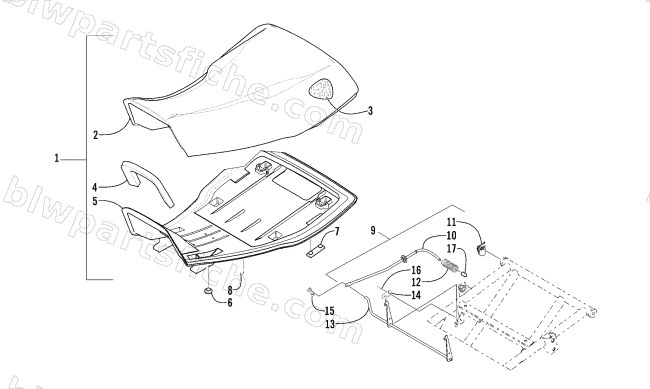

SEAT ASSEMBLY
2002 375 AUTOMATIC TRANSMISSION (2X4 )
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0506-558 | SEAT, ASSY | 1 | $292.95 | |
| 2 | 0506-556 | COVER, SEAT | 1 | $129.95 | |
| 3 | 0506-555 | FOAM,SEAT (68-72ILD).48@3.3 | 1 | $100.95 | |
| 4 | 1406-060 | FOAM,SOUND-SEAT | 1 | $11.95 | |
| 6 | 0406-877 | BUMPER,SEAT | 1 | $3.57 | |
| 7 | 0406-879 | BUMPER, SEAT | 1 | $3.71 | |
| 8 | 0624-100 | STAPLE,3/8L X 1/2W-20GA SS-SEAT | 1 | $0.12 | |
| 10 | 0506-702 | ROD, SEAT RELEASE-ASSY | 1 | $103.95 | |
| 11 | 1406-004 | BRKT, SEAT RELEASE | 1 | $14.95 | |
| 12 | 1406-005 | SPRING, SEAT RELEASE | 1 | $20.63 | |
| 13 | 0506-606 | LATCH,SEAT-WELDMENT | 1 | $59.95 | |
| 14 | 0406-923 | PLATE, RETAINER | 1 | $6.95 | |
| 15 | 0423-358 | CLIP, RETAINER-ROD | 1 | $13.73 | |
| 16 | 8060-284 | RIVET,BLIND-DH SS43 ZINC | 1 | $0.26 |
