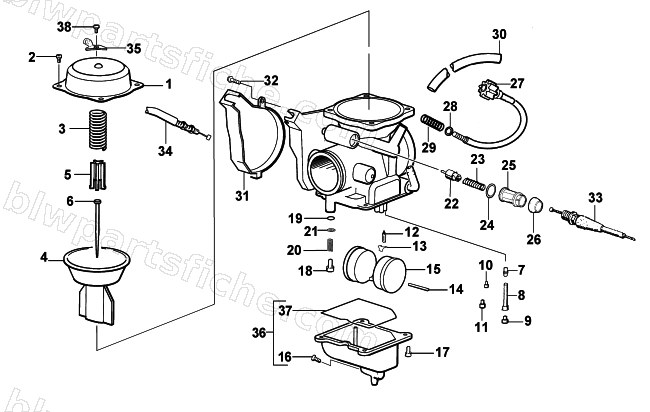

CARBURETOR
2002 375 AUTOMATIC TRANSMISSION (2X4 )
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 0470-454 | CARB, CVK 32 | 1 | $591.95 | |
| 1 | 5507-001 | COVER, TOP | 1 | $66.95 | |
| 2 | 5507-002 | SCREW, TOP COVER | 1 | $0.40 | |
| 3 | 5507-052 | SPRING | 1 | $6.89 | |
| 4 | 5507-053 | PISTON, VACUUM | 1 | $140.95 | |
| 5 | 5507-054 | SPRING, SEAT | 1 | $4.40 | |
| 6 | 5507-080 | JET, NEEDLE | 1 | $26.95 | |
| 7 | 5507-056 | NEEDLE, JET | 1 | $26.95 | |
| 8 | 5507-047 | HOLDER, NEEDLE- JET | 1 | $26.95 | |
| 9 | 5507-009 | MAIN JET 150 | 1 | $16.49 | |
| 9 | 5507-041 | MAIN JET 148 | 1 | $16.49 | |
| 9 | 5507-042 | MAIN JET 145 | 1 | $16.49 | |
| 9 | 5507-043 | MAIN JET 142 | 1 | $16.49 | |
| 9 | 5507-044 | MAIN JET 140 | 1 | $20.63 | |
| 10 | 5507-246 | JET,SLOW #38 | 1 | $20.63 | |
| 11 | 5507-090 | JET,STARTER 60 | 1 | $20.63 | |
| 12 | 5507-038 | FLOAT VALVE SET | 1 | $33.95 | |
| 15 | 5507-039 | FLOAT SET | 1 | $37.95 | |
| 16 | 5507-050 | SCREW, DRAIN | 1 | $3.02 | |
| 17 | 5507-017 | SCREW | 1 | $7.30 | |
| 18 | 5507-040 | PILOT SCREW SET | 1 | $10.97 | |
| 22 | 5507-022 | STARTER VALVE | 1 | $37.95 | |
| 23 | 5507-023 | SPRING | 1 | $3.44 | |
| 24 | 5507-024 | O-RING | 1 | $3.02 | |
| 25 | 5507-025 | CAP | 1 | $6.47 | |
| 26 | 5507-026 | RUBBER CAP | 1 | $3.44 | |
| 27 | 5507-027 | STOP SCREW COMP. | 1 | $122.95 | |
| 28 | 5507-028 | WASHER | 1 | $0.40 | |
| 29 | 5507-029 | SPRING | 1 | $5.92 | |
| 30 | 5507-083 | TUBE, VENT | 1 | $36.95 | |
| 31 | 5507-036 | COVER | 1 | $4.95 | |
| 32 | 5507-037 | SCREW(TOP COVER) | 1 | $0.95 | |
| 33 | 0487-016 | CABLE,CHOKE-500 (KEIHIN) | 1 | $74.95 | |
| 34 | 0487-049 | CABLE,THROTTLE | 1 | $69.95 | |
| 37 | 5507-068 | O-RING, FLOAT CHAMBER | 1 | $4.95 | |
| 38 | 5507-035 | SCREW | 1 | $1.23 |
