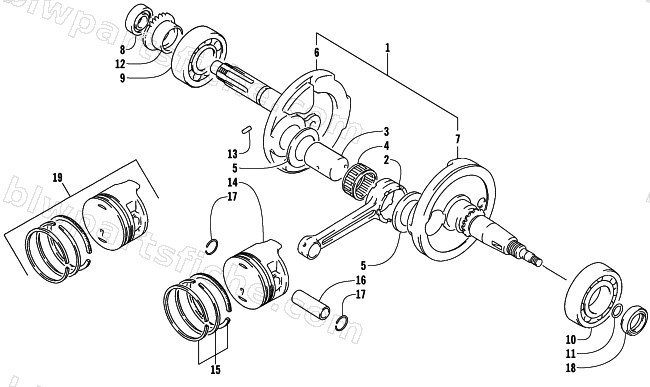

CRANKSHAFT ASSEMBLY
2002 300 2x4 ()
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3402-419 | CRANKSHAFT ASSY | 1 | $1,193.95 | |
| 1 | 3402-269 | CRANKSHAFT ASSY | 1 | $1,193.95 | |
| 2 | 3402-418 | ROD, CONNECTING | 1 | $196.95 | |
| 2 | 3402-268 | ROD,CONNECTING | 1 | $196.95 | |
| 3 | 3402-529 | PIN, CRANK | 1 | $62.95 | |
| 3 | 3402-548 | PIN, CRANK | 1 | $82.95 | |
| 4 | 3402-406 | ROLLER BEARING ,M30X39X18 | 1 | $130.95 | |
| 4 | 3402-223 | BEARING,ROLLER,M32X41X18 | 1 | $122.95 | |
| 5 | 3005-241 | WASHER,M32X48.5X1 | 1 | $13.73 | |
| 6 | 3402-792 | CRANKSHAFT,COMP-R | 1 | $549.95 | |
| 7 | 3402-802 | CRANKSHAFT,LH | 1 | $541.95 | |
| 7 | 3402-703 | CRANKSHAFT,LEFT | 1 | $563.95 | |
| 8 | 3402-216 | BEARING,M15X35X11 | 1 | $48.95 | |
| 9 | 3402-221 | BEARING,M28X68X18 | 1 | $122.95 | |
| 10 | 3402-055 | BALL BEARING ,M35X72X17 | 1 | $112.95 | |
| 11 | 3423-053 | O RING | 1 | $6.47 | |
| 12 | 3402-428 | GEAR,OIL PUMP DRIVE(NT:30) | 1 | $87.95 | |
| 12 | 3402-301 | GEAR,OIL PUMP DRIVE | 1 | $72.95 | |
| 13 | 3423-114 | MM (DOWEL) | 1 | $2.06 | |
| 14 | 3402-415 | PISTON (66.00MM) | 1 | $169.95 | |
| 14 | 3402-265 | PISTON | 1 | $169.95 | |
| 15 | 3402-416 | RING SET, PISTON | 1 | $94.95 | |
| 15 | 3402-266 | RING SET,PISTON | 1 | $85.95 | |
| 15 | 3436-013 | RING SET,+020 | 1 | $91.95 | |
| 15 | 3436-014 | RING SET,+040 | 1 | $94.95 | |
| 15 | 3436-011 | RING SET,+.50 | 1 | $90.95 | |
| 15 | 3436-012 | RING SET,+.1.0 | 1 | $94.95 | |
| 16 | 3402-417 | PIN, PISTON | 1 | $33.95 | |
| 16 | 3402-267 | PIN,PISTON | 1 | $33.95 | |
| 17 | 3423-366 | CIRCLIP,M17 | 1 | $3.30 | |
| 17 | 3423-280 | CIRCLIP,M18 | 1 | $4.54 | |
| 18 | 3402-227 | SEAL,OIL,M22 | 1 | $41.95 | |
| 19 | 3402-423 | PISTON SET, OS0.5 | 1 | $235.95 | |
| 19 | 3402-424 | PISTON SET, OS1.0 | 1 | $228.95 | |
| 19 | 3402-306 | PISTON ASSY,.50 OVERSIZE | 1 | $220.95 | |
| 19 | 3402-307 | PISTON SET,1.0 | 1 | $235.95 |
