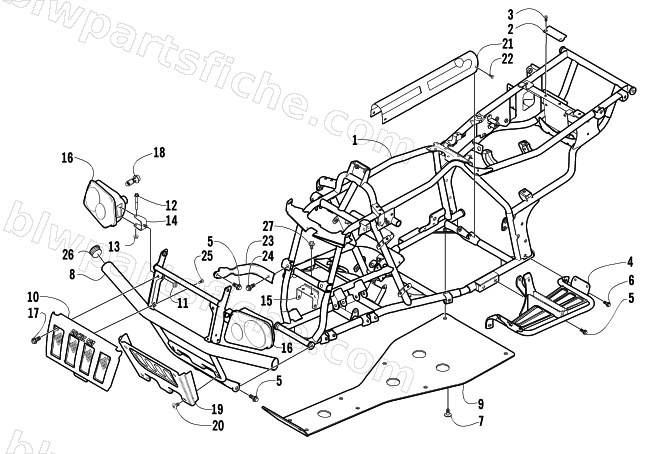

FRAME AND RELATED PARTS
2002 250 4x4 ()
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0506-574 | FRAME, MAIN - WELDT (250,300, 4X4) | 1 | $1,021.59 | |
| 2 | 0506-962 | BRACKET,BODY HOLD DOWN-BLACK | 1 | $10.97 | |
| 3 | 8476-616 | SCREW,MACH-TSTRH M6X1.0X16 Z&Y | 1 | $0.40 | |
| 4 | 0506-959 | FOOTREST, RH - BLACK | 1 | $328.95 | |
| 4 | 0506-217 | FOOTREST, LHW/FOOTSHIFT BLACK | 1 | $151.95 | |
| 5 | 8409-020 | SCREW,CAP-HFH M10X1.25X20 CL10.9 Z&Y | 1 | $0.54 | |
| 6 | 8408-816 | SCREW,CAP-HFH M8X1.25X16 CL8.8 Z&Y | 1 | $0.68 | |
| 7 | 0423-101 | SCREW,BODY-6MM | 1 | $2.06 | |
| 8 | 0506-594 | BRUSH GUARD,FR-WELDT(SM CH) | 1 | $181.95 | |
| 8 | 0506-520 | BUMPER,FR-BLACK (SM CH) | 1 | $139.95 | |
| 9 | 0406-894 | PANEL, BELLY (FWD) | 1 | $97.95 | |
| 11 | 8424-802 | NUT,HEX-FLG M8X1.25 CL8 Z&Y | 1 | $0.54 | |
| 12 | 8410-860 | SCREW,CAP-HFH M8X1.25X60 CL8.8 RIE BLK | 1 | $1.50 | |
| 13 | 0423-375 | NUT,FLANGE NYLOCK-M8 | 1 | $1.23 | |
| 14 | 0406-945 | BRKT, MTG,-HEADLIGHT | 1 | $29.95 | |
| 15 | 0506-210 | BRKT, FR GEAR CASE-UPR BLACK | 1 | $25.95 | |
| 16 | 0409-032 | HEADLIGHT,RH-ASSY | 1 | $135.95 | |
| 16 | 0409-031 | HEADLIGHT,LH-ASSY | 1 | $135.95 | |
| 17 | 0423-361 | SCREW,MACH-TSTRH M6-1.0 X 12 CL8.8 BLK | 1 | $0.95 | |
| 18 | 0409-045 | BULB, HEADLIGHT (880) | 1 | $34.95 | |
| 19 | 1406-420 | GRILLE, LOWER | 1 | $49.95 | |
| 20 | 0423-362 | SCREW, MACH-TSTH M8-1.25 X 30 EM- BLK | 1 | $8.21 | |
| 21 | 0506-963 | COVER,FR DRIVESHAFT-BLACK | 1 | $43.95 | |
| 22 | 8471-610 | SCREW,MACH-TSPNH M6X1.0X10 CL8.8 Z&B | 1 | $0.55 | |
| 23 | 0506-964 | CHANNEL,BUMPER MTG-BLACK | 1 | $37.95 | |
| 24 | 8408-812 | SCREW,CAP-HFH M8X1.25X12 CL8.8 Z&Y | 1 | $1.78 | |
| 25 | 0623-361 | SCREW,SELF TAP-HWH #10-24X1/2 TYP F Z&Y | 1 | $0.40 | |
| 26 | 0406-130 | CAP,BUMPER(RDR17-1420) | 1 | $5.51 | |
| 27 | 8408-820 | SCREW,CAP-HFH M8X1.25X20 CL8.8 Z&Y | 1 | $0.68 |
