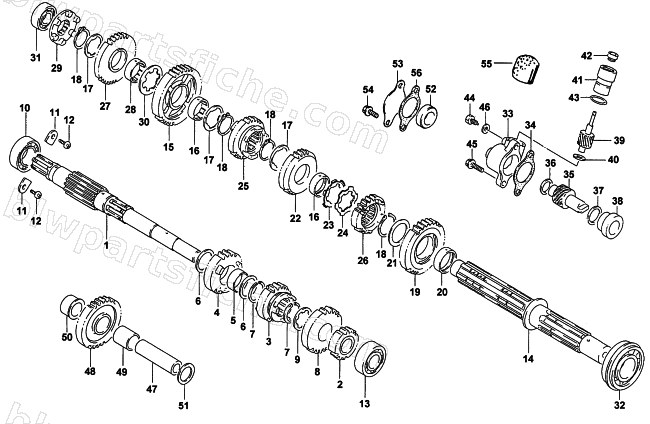

TRANSMISSION ASSEMBLY
2002 250 2x4 ()
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3446-277 | SHAFT, COUNTER | 1 | $306.95 | |
| 2 | 3446-137 | GEAR,2ND DRIVE | 1 | $164.95 | |
| 3 | 3446-138 | GEAR,3RD DRIVE | 1 | $164.95 | |
| 4 | 3446-139 | GEAR,4TH DRIVE | 1 | $169.95 | |
| 5 | 3402-229 | BUSHING,M22 | 1 | $30.95 | |
| 6 | 3402-210 | WASHER,M22X30X1.0 | 1 | $2.95 | |
| 7 | 3423-279 | CIRCLIP,M22 | 1 | $9.59 | |
| 8 | 3446-140 | GEAR,5TH DRIVE | 1 | $164.95 | |
| 9 | 3423-791 | WASHER | 1 | $3.57 | |
| 10 | 0691-374 | BALL BEARING ,M20X50X14 | 1 | $36.95 | |
| 11 | 3446-031 | RETAINER, BEARING | 1 | $5.78 | |
| 12 | 3007-574 | SCREW,6X12 | 1 | $2.47 | |
| 13 | 3402-224 | BEARING,M17X40X17.5 | 1 | $140.95 | |
| 14 | 3402-797 | DRIVESHAFT | 1 | $461.95 | |
| 15 | 3446-141 | GEAR,1ST DRIVEN | 1 | $169.95 | |
| 16 | 3446-273 | BUSHING, DRIVEN, GEAR | 1 | $33.95 | |
| 17 | 3423-036 | WASHER,25MM | 1 | $4.54 | |
| 18 | 3423-066 | CIRCLIP,M25 | 1 | $6.47 | |
| 19 | 3446-142 | GEAR,2ND DRIVEN | 1 | $164.95 | |
| 20 | 3402-230 | BUSHING,M25X29X8 | 1 | $30.95 | |
| 21 | 3423-317 | WASHER,M25X35 | 1 | $3.02 | |
| 22 | 3446-143 | GEAR,3RD DRIVEN | 1 | $164.95 | |
| 23 | 3423-266 | WASHER,LOCK,25MM | 1 | $2.61 | |
| 24 | 3423-262 | WASHER,LOCK,25MM | 1 | $4.54 | |
| 25 | 3446-146 | GEAR,4TH DRIVEN | 1 | $196.95 | |
| 26 | 3446-147 | GEAR,5TH DRIVEN | 1 | $151.95 | |
| 27 | 3446-151 | GEAR,REVERSE DRIVEN | 1 | $196.95 | |
| 28 | 3446-145 | BUSHING, REVERSE DRIVEN GEAR | 1 | $32.95 | |
| 29 | 3446-152 | DOG,REVERSE | 1 | $118.95 | |
| 30 | 3423-263 | WASHER,LOCK,25MM | 1 | $4.54 | |
| 31 | 3402-218 | BALL BEARING,M17X35X10 | 1 | $76.95 | |
| 32 | 3402-220 | BEARING,BALL,M25X52X15 | 1 | $69.95 | |
| 33 | 3446-057 | HOUSING, ODOMETER GEAR | 1 | $91.95 | |
| 34 | 3446-244 | GASKET,ODOMETER GEAR SLV | 1 | $13.73 | |
| 35 | 3446-228 | GEAR, ODOMETER DRIVE (NT:10) | 1 | $122.95 | |
| 36 | 3423-336 | WASHER, RH (M15X20X1.0) | 1 | $2.95 | |
| 37 | 3423-502 | SHIM,17X24X1.0 | 1 | $5.92 | |
| 38 | 3446-114 | SPACER, DRIVEN GEAR | 1 | $47.95 | |
| 39 | 3446-229 | GEAR, ODOMETER DRIVEN (NT:14) | 1 | $69.95 | |
| 40 | 3423-144 | WASHER, ODOMETER DRIVEN GEAR-M8X15 | 1 | $2.95 | |
| 41 | 3446-058 | SLEEVE, ODOMETER DRIVEN GEAR | 1 | $66.95 | |
| 42 | 3402-077 | OIL SEAL,M5 | 1 | $20.95 | |
| 43 | 3423-056 | O RING D:1.9 ID:16.6 | 1 | $4.82 | |
| 44 | 3423-792 | BOLT,6X10 | 1 | $3.16 | |
| 45 | 3007-515 | BOLT,WATER INLET CONNECTOR | 1 | $3.16 | |
| 46 | 3402-009 | WASHER, DRIVEN, M6.2X11X1.2 | 1 | $2.47 | |
| 47 | 3446-148 | SHAFT,REVERSE IDLE | 1 | $56.95 | |
| 48 | 3446-149 | GEAR,REVERSE IDLE | 1 | $169.95 | |
| 49 | 3402-228 | BUSHING,M17 | 1 | $20.63 | |
| 50 | 3446-150 | SPACER,GEAR | 1 | $30.95 | |
| 51 | 3402-209 | WASHER,M17X28X1.0 | 1 | $3.71 | |
| 52 | 3402-255 | PLUG,TRANSFER COVER HOLE | 1 | $20.63 | |
| 53 | 3446-260 | RETAINER TRANSFER COVER PLUG | 1 | $23.39 | |
| 53 | 3446-153 | RETAINER,TRANSFER COVER | 1 | $6.95 | |
| 54 | 3423-363 | BOLT, 6X16 | 1 | $2.33 | |
| 54 | 3423-231 | BOLT,6X100 | 1 | $3.57 | |
| 55 | 0402-160 | CAP,SPEEDO DRIVE | 1 | $13.95 |
