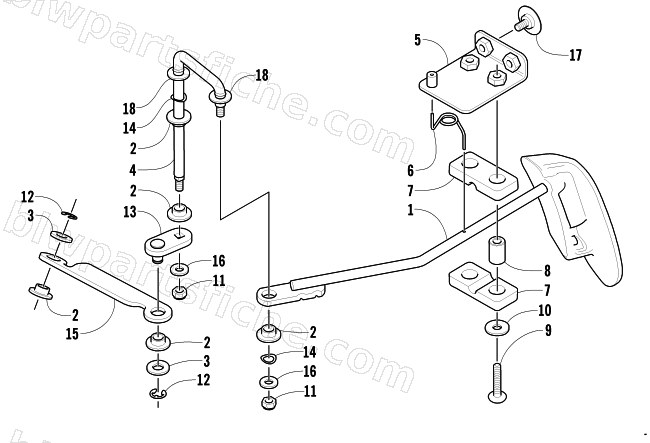

2002 Arctic Cat 250 2x4 () — FRONT DRIVE SHIFT LINKAGE ASSEMBLY (300 4X4)
2002 250 2x4 ()
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0502-291 | SHIFTER, 2 X/4 X-W/HANDLE | 1 | $67.95 | |
| 2 | 0423-091 | BUSHING,SHIFT | 1 | $3.16 | |
| 3 | 8050-247 | WASHER,FLAT- 5/16 X .688 X .065 Z&Y | 1 | $0.68 | |
| 4 | 0402-821 | SHAFT,BELLCRANK | 1 | $43.95 | |
| 5 | 0502-234 | PLATE,MOUNTING-BLACK | 1 | $45.95 | |
| 6 | 0402-828 | SPRING, TORSION | 1 | $8.95 | |
| 7 | 0406-363 | BUSHING,HIGH/LOW SHIFT | 1 | $9.59 | |
| 8 | 0402-256 | COLLAR,HI LO SHIFT | 1 | $12.95 | |
| 9 | 8476-630 | SCREW,MACH-TSTRH M6X1.0X30 Z&Y | 1 | $1.09 | |
| 10 | 8050-222 | WASHER,FLAT- 1/4 X .734 X .063 Z&Y | 1 | $0.68 | |
| 11 | 0624-250 | NUT,LOCK-NSL M6-1.0 SS | 1 | $0.68 | |
| 12 | 0124-057 | E-RING | 1 | $1.64 | |
| 13 | 0502-295 | BELLCRANK-ASSY | 1 | $27.95 | |
| 14 | 0423-368 | WSHR, WAVE.33 X .50 X .08 | 1 | $1.95 | |
| 15 | 0502-396 | LINK, CROSS - BLACK | 1 | $48.95 | |
| 16 | 0423-348 | WSHR, FLAT-.25 X .56 X .07 Z&Y | 1 | $1.64 | |
| 17 | 0423-101 | SCREW,BODY-6MM | 1 | $2.06 | |
| 18 | 0123-053 | WASHER, FLAT 5/16 X 3/4 | 1 | $1.64 |
