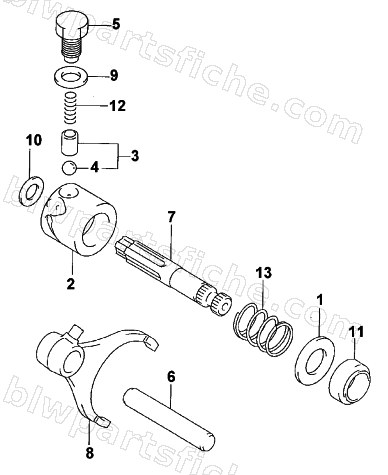

2001 Arctic Cat 500 (MANUAL TRANSMISSION) — SECONDARY GEAR SHIFT ASSEMBLY (500 cc)
2001 500 (MANUAL TRANSMISSION)
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3423-339 | WASHER, LH-M12X24 | 1 | $3.02 | |
| 2 | 3446-203 | CAM,FR DIFF LOCKING | 1 | $90.95 | |
| 3 | 3446-119 | STOPPER, SHIFT CAM | 1 | $20.63 | |
| 4 | 3446-118 | BALL, STEEL | 1 | $3.02 | |
| 5 | 3446-046 | PLUG, OIL | 1 | $20.63 | |
| 6 | 3446-202 | SHAFT,GEAR SHIFT FORK | 1 | $45.95 | |
| 7 | 3446-204 | SHAFT,FR DIFF CAM | 1 | $122.95 | |
| 8 | 3446-205 | FORK,DIFF SHIFT | 1 | $122.95 | |
| 9 | 3402-012 | GASKET, OIL PLUG,M13.8X18.8X0.4 | 1 | $10.97 | |
| 10 | 3423-300 | WASHER,M10X18X1 | 1 | $2.75 | |
| 11 | 3402-076 | OIL SEAL,M12X22X9 | 1 | $16.49 | |
| 12 | 3402-089 | SPRING,COMPRESSION,M5 | 1 | $4.95 | |
| 13 | 3402-311 | SPRING,M17 | 1 | $4.40 |
