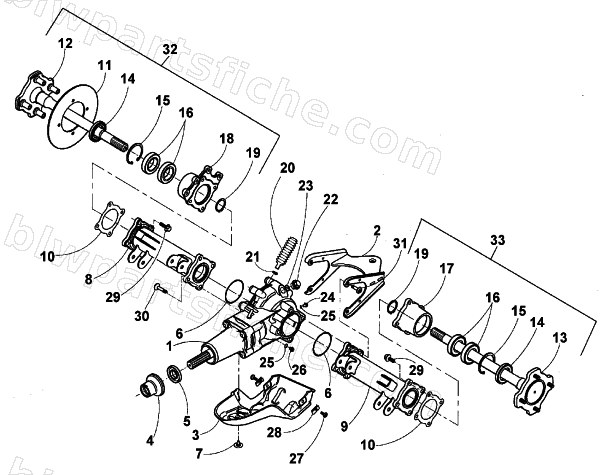

REAR AXLE ASSEMBLY
2001 500 CC (AUTOMATIC TRANSMISSION)
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0502-108 | GEARCASE,RR- ASSY | 1 | $1,411.95 | |
| 2 | 0506-300 | TRAILER HITCH-BLACK | 1 | $130.95 | |
| 3 | 0406-415 | PANEL,GEARCASE RR | 1 | $24.95 | |
| 4 | 0402-352 | SLINGER,REAR GEARCASE | 1 | $16.95 | |
| 5 | 0402-323 | SEAL,25 X 52 X 8 DC | 1 | $13.73 | |
| 6 | 0423-119 | O-RING,79.5 X2MM | 1 | $3.57 | |
| 7 | 0423-101 | SCREW,BODY-6MM | 1 | $2.06 | |
| 8 | 0502-090 | HOUSING,AXLE-RH-BLACK | 1 | $283.95 | |
| 9 | 0502-091 | HOUSING,AXLE-LH-BLACK | 1 | $283.95 | |
| 10 | 0402-374 | GASKET,AXLE-RR | 1 | $20.63 | |
| 11 | 1436-164 | KIT-DISC,BRAKE | 1 | $58.95 | |
| 12 | 0502-272 | AXLE, ASSY-RR-RH | 1 | $267.95 | |
| 13 | 0502-273 | AXLE,REAR-LH-ASSY | 1 | $441.95 | |
| 14 | 0402-348 | SEAL, 40 X 62 X 8 | 1 | $47.95 | |
| 15 | 0402-347 | RING,RETAINING-INT 62 | 1 | $4.95 | |
| 16 | 0402-339 | BEARING,BALL (6007 2RS C3) | 1 | $23.39 | |
| 18 | 0502-138 | HOUSING,BEARING-MACH RH | 1 | $101.95 | |
| 19 | 0402-351 | RING,RETAINING-EXT 35MM | 1 | $2.95 | |
| 20 | 1402-620 | BLADDER,CASE | 1 | $12.35 | |
| 21 | 0423-315 | CLAMP, HOSE-DOUBLE WIRE | 1 | $0.95 | |
| 22 | 0402-333 | PLUG, FILL | 1 | $13.73 | |
| 23 | 0423-154 | O-RING, GEARCASE,20 X 2.5MM | 1 | $3.16 | |
| 24 | 0402-334 | PLUG,DRAIN | 1 | $32.95 | |
| 25 | 0423-153 | O-RING, GEARCASE,6X1.5MM | 1 | $3.96 | |
| 26 | 1402-210 | PLUG,DRAIN-MAGNETIC | 1 | $20.63 | |
| 27 | 8477-616 | SCREW,MACH-TSTRH M6X1.0X16 Z&BLK | 1 | $0.68 | |
| 28 | 0423-031 | NUT,SPEED M6 X 1.0 U-TYPE | 1 | $0.95 | |
| 29 | 8409-025 | SCREW,CAP-HFH M10X1.25X25 CL10.9 Z&Y | 1 | $1.50 | |
| 30 | 0423-117 | SCREW,SELFTAP-TSPNH M10X1.5X33 | 1 | $1.78 | |
| 31 | 0423-116 | SCREW,SELF TAP-TSPNH M10X1.5X37 | 1 | $30.95 | |
| 32 | 0502-140 | RETAINER, AXLE - RR RH ASSY | 1 | $383.95 | |
| 33 | 0502-107 | RETAINER, AXLE - RR LH ASSY | 1 | $430.95 |
