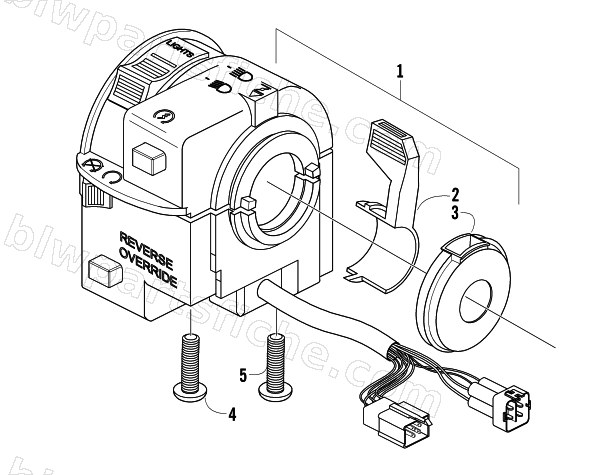

2001 Arctic Cat 500 CC (AUTOMATIC TRANSMISSION) — CONTROL SWITCH HOUSING ASSEMBLY
2001 500 CC (AUTOMATIC TRANSMISSION)
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0409-022 | SWITCH, CONTROL LH - ASSEMBLY (W/ OVER R | 1 | $196.95 | |
| 2 | 0409-025 | LEVER, CHOKE | 1 | $20.63 | |
| 3 | 0409-026 | COVER, CHOKE LEVER | 1 | $17.87 | |
| 4 | 0409-027 | SCREW, SWITCH CONTROL - 5X35-6ZK | 1 | $4.95 | |
| 5 | 0409-028 | SCREW, SWITCH CONTROL - 5X45-6ZK | 1 | $4.95 |
