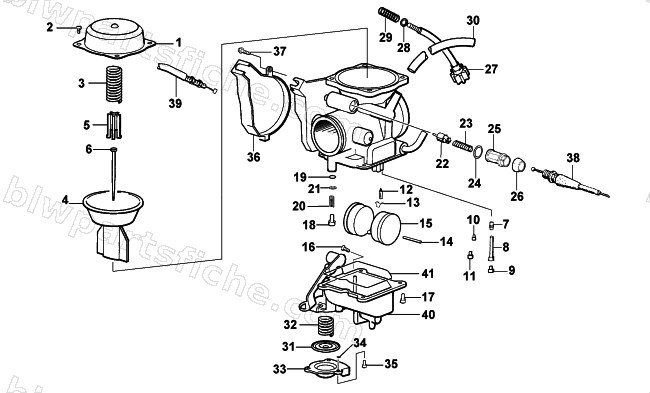

2001 Arctic Cat 500 CC (AUTOMATIC TRANSMISSION) — CARBURETOR
2001 500 CC (AUTOMATIC TRANSMISSION)
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 0470-449 | CARB-KEIHIN CVK 34 | 1 | $817.95 | |
| 1 | 5507-001 | COVER, TOP | 1 | $66.95 | |
| 2 | 5507-002 | SCREW, TOP COVER | 1 | $0.40 | |
| 3 | 5507-066 | SPRING | 1 | $6.47 | |
| 4 | 5507-004 | PISTON, VACUUM | 1 | $126.95 | |
| 5 | 5507-005 | SPRING SEAT | 1 | $3.16 | |
| 6 | 5507-006 | JET NEEDLE | 1 | $30.95 | |
| 7 | 5507-007 | NEEDLE JET | 1 | $26.95 | |
| 8 | 5507-047 | HOLDER, NEEDLE- JET | 1 | $26.95 | |
| 9 | 5507-042 | MAIN JET 145 | 1 | $16.49 | |
| 9 | 5507-009 | MAIN JET 150 | 1 | $16.49 | |
| 9 | 5507-041 | MAIN JET 148 | 1 | $16.49 | |
| 9 | 5507-043 | MAIN JET 142 | 1 | $16.49 | |
| 9 | 5507-044 | MAIN JET 140 | 1 | $20.63 | |
| 10 | 5507-246 | JET,SLOW #38 | 1 | $20.63 | |
| 11 | 5507-011 | MAIN / STARTER JET 102 | 1 | $20.63 | |
| 12 | 5507-038 | FLOAT VALVE SET | 1 | $33.95 | |
| 15 | 5507-039 | FLOAT SET | 1 | $37.95 | |
| 16 | 5507-050 | SCREW, DRAIN | 1 | $3.02 | |
| 17 | 5507-017 | SCREW | 1 | $7.30 | |
| 18 | 5507-040 | PILOT SCREW SET | 1 | $10.97 | |
| 22 | 5507-022 | STARTER VALVE | 1 | $37.95 | |
| 23 | 5507-023 | SPRING | 1 | $3.44 | |
| 24 | 5507-024 | O-RING | 1 | $3.02 | |
| 25 | 5507-025 | CAP | 1 | $6.47 | |
| 26 | 5507-026 | RUBBER CAP | 1 | $3.44 | |
| 27 | 5507-027 | STOP SCREW COMP. | 1 | $122.95 | |
| 28 | 5507-028 | WASHER | 1 | $0.40 | |
| 29 | 5507-029 | SPRING | 1 | $5.92 | |
| 30 | 5507-030 | TUBE, VINYL | 1 | $21.95 | |
| 31 | 5507-197 | DIAPHRAGM | 1 | $42.95 | |
| 32 | 5507-032 | SPRING | 1 | $13.73 | |
| 34 | 5507-034 | U RING | 1 | $3.02 | |
| 35 | 5507-035 | SCREW | 1 | $1.23 | |
| 36 | 5507-036 | COVER | 1 | $4.95 | |
| 37 | 5507-037 | SCREW(TOP COVER) | 1 | $0.95 | |
| 38 | 0487-016 | CABLE,CHOKE-500 (KEIHIN) | 1 | $74.95 | |
| 39 | 0487-049 | CABLE,THROTTLE | 1 | $69.95 | |
| 41 | 5507-067 | O-RING, FLOAT CHAMBER | 1 | $16.49 |
