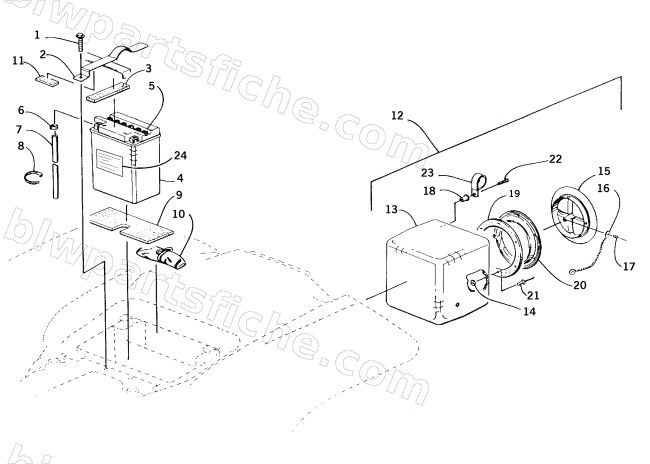

2001 Arctic Cat 400 4X4 (MANUAL TRANSMISSION) — STORAGE BOX AND BATTERY ASSEMBLY
2001 400 4X4 (MANUAL TRANSMISSION)
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 8476-616 | SCREW,MACH-TSTRH M6X1.0X16 Z&Y | 1 | $0.40 | |
| 2 | 0506-178 | STRAP,BATTERY W/PAD | 1 | $26.95 | |
| 3 | 0406-289 | PAD,BATTERY-TOP RR | 1 | $1.78 | |
| 4 | 0745-045 | BATTERY PKG (0645-165) | 1 | $124.95 | |
| 5 | 0645-045 | BATTERY CAP | 1 | $1.92 | |
| 6 | 0645-152 | CLAMP, HOSE-BATTERY VENT | 1 | $2.47 | |
| 7 | 0645-263 | HOSE, BATTERY VENT-550MM | 1 | $3.44 | |
| 8 | 0123-903 | TIE,CABLE 11.50 | 1 | $0.54 | |
| 9 | 0406-227 | PAD,BATTERY-LOWER | 1 | $3.57 | |
| 10 | 0444-122 | KIT, TOOL | 1 | $24.77 | |
| 11 | 0406-288 | PAD,BATTERY-TOP FR | 1 | $6.34 | |
| 12 | 0506-102 | TOOL BOX-ASSY | 1 | $114.95 | |
| 22 | 0623-301 | SCREW,SELF TAP-HWH 10X1/2 AB Z&Y | 1 | $0.12 | |
| 23 | 0423-044 | CLAMP,TUBE-1" ARDEN(COV 1709 ZI) | 1 | $2.61 | |
| 24 | 0645-151 | LABEL, WARNING-BATTERY | 1 | $10.97 |
