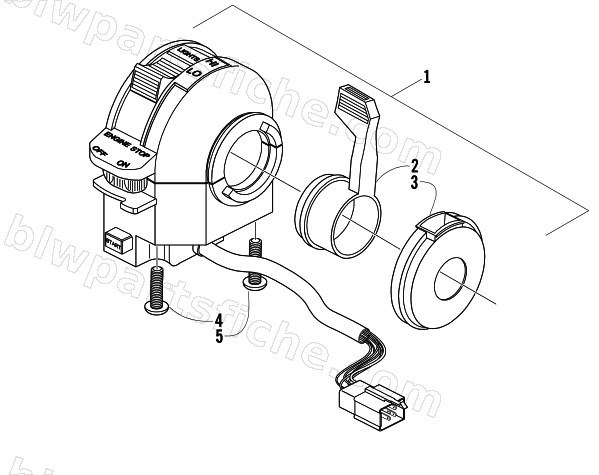

2001 Arctic Cat 400 4X4 (MANUAL TRANSMISSION) — CONTROL SWITCH HOUSING ASSEMBLY
2001 400 4X4 (MANUAL TRANSMISSION)
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3509-017 | SWITCH ASSY.,HANDLE LEFT | 1 | $227.95 | |
| 2 | 3409-009 | LEVER, CHOKE | 1 | $33.95 | |
| 3 | 3409-010 | COVER, CHOKE | 1 | $20.63 | |
| 4 | 3423-196 | SCREW, 5X40 | 1 | $2.33 | |
| 5 | 3423-197 | SCREW, 5X45 | 1 | $2.61 |
