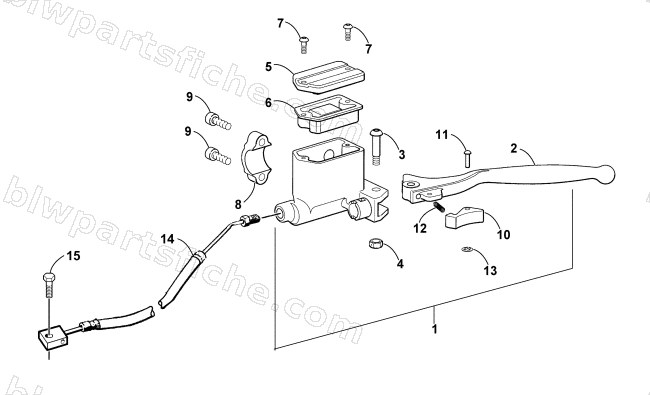

2001 Arctic Cat 400 2X4 (MANUAL TRANSMISSION) — HYDRAULIC HAND BRAKE ASSEMBLY
2001 400 2X4 (MANUAL TRANSMISSION)
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0502-387 | MASTER CYLINDER - ASSEMBLY | 1 | $199.95 | |
| 2 | 0402-818 | LEVER, BRAKE | 1 | $64.95 | |
| 3 | 0623-430 | BOLT, LEVER MOUNTING | 1 | $4.68 | |
| 4 | 0402-941 | NUT,HEX LOCK-M6-1 | 1 | $1.95 | |
| 5 | 1402-030 | COVER,MASTER CYLINDER | 1 | $20.95 | |
| 6 | 0402-553 | BLADDER, RESERVOIR (OL) | 1 | $58.95 | |
| 10 | 1402-034 | LOCK, BRAKE LEVER | 1 | $6.75 | |
| 11 | 0402-936 | RIVET,.125 X .50L BLK | 1 | $0.65 | |
| 13 | 0402-937 | WASHER,LOCK-RETAINING | 1 | $0.65 | |
| 14 | 0437-073 | KIT-HOSE,BRAKE MASTER CYLINDER | 1 | $135.95 | |
| 15 | 8476-625 | SCREW,MACH-TSTRH M6X1.0X25 Z&Y | 1 | $1.78 |
