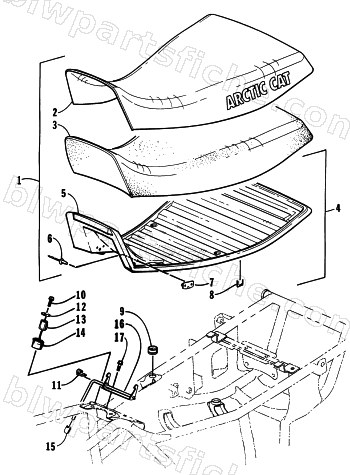

SEAT ASSEMBLY
2001 300 4X4
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 5990-176 | SEAT-MFG ASSY | 1 | $264.95 | |
| 2 | 0506-290 | R/B 0406-404 | 1 | $143.95 | |
| 3 | 0506-291 | FOAM,SEAT (68-72ILD).44@2.9 | 1 | $112.95 | |
| 4 | 0506-223 | BASE,SEAT - ASSY | 1 | $139.95 | |
| 6 | 8061-628 | RIVET,BLIND-LF AA66 BLACK | 1 | $0.95 | |
| 7 | 1506-057 | PIN,SEATBASE-BLACK | 1 | $37.95 | |
| 8 | 0624-100 | STAPLE,3/8L X 1/2W-20GA SS-SEAT | 1 | $0.12 | |
| 9 | 0406-309 | GROMMET,SEAT-CTR MT | 1 | $10.97 | |
| 10 | 8476-620 | SCREW,MACH-TSTRH M6X1.0X20 Z&Y | 1 | $0.40 | |
| 11 | 0406-235 | SPRING,SEAT LATCH | 1 | $5.95 | |
| 12 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 13 | 0406-199 | COLLAR, FRONT SEAT BASE BUMPER | 1 | $5.92 | |
| 14 | 0406-171 | BUMPER,SEAT BASE-FR | 1 | $2.95 | |
| 16 | 1506-056 | LATCH,SEAT-BLACK | 1 | $62.95 | |
| 17 | 8476-616 | SCREW,MACH-TSTRH M6X1.0X16 Z&Y | 1 | $0.40 |
