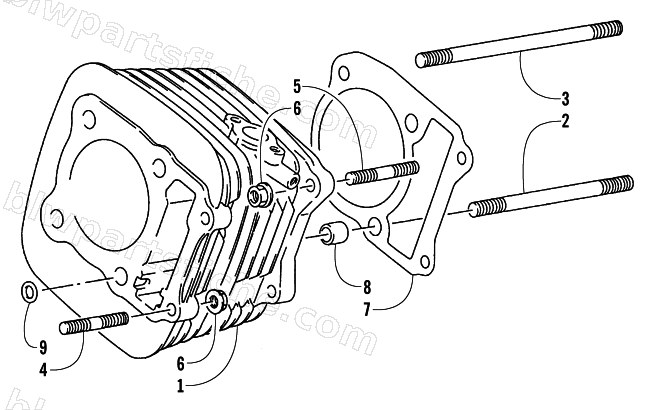

CYLINDER ASSEMBLY
2001 300 4X4
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3402-409 | CYLINDER (250 ATV) | 1 | $655.95 | |
| 1 | 3402-251 | CYLINDER (300 ATV) | 1 | $619.95 | |
| 2 | 3423-365 | BOLT, STUD 8X160 | 1 | $9.59 | |
| 2 | 3423-238 | BOLT,STUD,8MM | 1 | $10.97 | |
| 3 | 3423-364 | BOLT, STUD,8MM | 1 | $10.97 | |
| 3 | 3423-239 | BOLT,STUD,8MM | 1 | $12.35 | |
| 4 | 3007-480 | BOLT,STUD | 1 | $2.06 | |
| 5 | 3423-237 | STUD,6MM | 1 | $4.40 | |
| 6 | 3007-373 | NUT | 1 | $3.16 | |
| 7 | 3402-410 | GASKET, CYLINDER | 1 | $33.95 | |
| 7 | 3402-252 | GASKET,CYLINDER(NA) | 1 | $50.95 | |
| 8 | 3423-306 | PIN,KNOCK(ALIGMENT) | 1 | $4.13 | |
| 9 | 3005-226 | O RING, WATER DRAIN | 1 | $5.09 |
