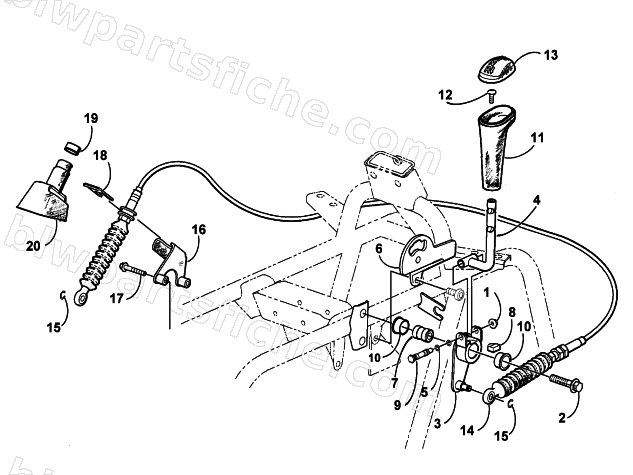

SHIFT LEVER ASSEMBLY
2000 500 CC AUTOMATIC ()
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 8424-602 | NUT,HEX-FLG M6X1.0 CL8 Z&Y | 1 | $0.26 | |
| 2 | 8409-045 | SCREW,CAP-HFH M10X1.25X45 CL10.9 Z&Y | 1 | $1.50 | |
| 3 | 0502-159 | HUB, SHIFT, LEVER,-WELD'T | 1 | $178.95 | |
| 4 | 0502-158 | LEVER, SHIFT,(R,N,H,L) - WELD'T | 1 | $33.95 | |
| 5 | 0423-163 | O-RING,SHIFT | 1 | $0.95 | |
| 6 | 0402-572 | PLATE, SHIFT, DETENT | 1 | $26.95 | |
| 7 | 0402-571 | AXLE, SHIFT, LEVER,(R,N,H,L,) | 1 | $19.25 | |
| 8 | 0402-567 | BUMPER, PLASTIC | 1 | $4.95 | |
| 9 | 0402-566 | AXLE, PIVOT, SHAFT | 1 | $19.25 | |
| 10 | 0402-513 | BUSHING,FLANGE SHIFT LVR | 1 | $1.95 | |
| 11 | 0402-508 | HANDLE,SHIFT LEVER | 1 | $42.95 | |
| 12 | 8477-610 | SCREW,MACH-TSTRH M6X1.0X10 Z&BLK | 1 | $0.68 | |
| 13 | 0402-470 | CAP,SHIFT KNOB | 1 | $17.95 | |
| 14 | 0487-020 | CABLE,SHIFT | 1 | $224.95 | |
| 15 | 0423-169 | E-RING,5/16-(.242 X.588 X.035) | 1 | $0.68 | |
| 16 | 0502-152 | BRKT, SHIFT CABLE ENG- WELDT | 1 | $29.95 | |
| 17 | 0423-164 | SCREW, MACH,HHC DIN M6X55 | 1 | $0.55 | |
| 18 | 3423-282 | CLIP,SHIFT CABLE,M19 | 1 | $6.34 | |
| 20 | 0406-539 | COVER, SHIFT CABLE-ENGINE | 1 | $100.95 |
