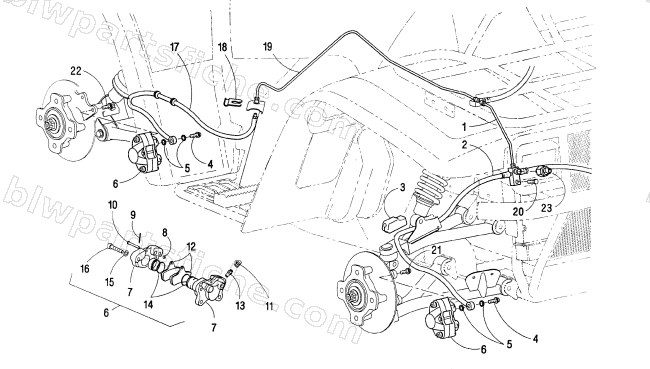

HYDRAULIC BRAKE ASSEMBLY
2000 500 4X4 ()
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0402-373 | TUBE,BRAKE LINE FR | 1 | $32.95 | |
| 2 | 0402-307 | HOSE,BRAKE-FR W/SWITCH FITTING | 1 | $167.95 | |
| 3 | 0402-073 | BLOCK,MOUNT-BRAKE HOSE | 1 | $10.95 | |
| 4 | 0423-389 | BOLT,BANJO FITTING | 1 | $12.35 | |
| 5 | 0423-039 | WASHER,CRUSH | 1 | $3.30 | |
| 6 | 0402-010 | CALIPER,BRAKE-RH | 1 | $324.95 | |
| 6 | 0402-011 | CALIPER,BRAKE-LH | 1 | $324.95 | |
| 8 | 0402-164 | O-RING-HYD BRAKE CALIPER(.375 OD) | 1 | $6.20 | |
| 10 | 0402-142 | PIN,HYD BRAKE CALIPER | 1 | $3.95 | |
| 11 | 0402-143 | CAP,BLEEDER ZERK | 1 | $10.97 | |
| 12 | 0402-882 | PAD, BRAKE | 1 | $29.95 | |
| 13 | 0402-167 | ZERK-HYD BRAKE | 1 | $18.95 | |
| 14 | 0402-141 | O-RING,HYD BRAKE CALIPER(0.96 ID) | 1 | $3.95 | |
| 15 | 0402-165 | WASHER-HYD BRAKE | 1 | $3.02 | |
| 16 | 0402-486 | SCREW, CAP-HH-HYD BRAKE | 1 | $2.95 | |
| 17 | 0402-184 | HOSE,BRAKE - REAR | 1 | $95.95 | |
| 18 | 0402-597 | CLIP, BRAKE LINE-PLATED | 1 | $9.59 | |
| 19 | 0402-054 | TUBE,BRAKE LINE-RR | 1 | $40.95 | |
| 20 | 8476-625 | SCREW,MACH-TSTRH M6X1.0X25 Z&Y | 1 | $1.78 | |
| 21 | 8408-825 | SCREW,CAP-HFH M8X1.25X25 CL8.8 Z&Y | 1 | $1.23 | |
| 22 | 8408-820 | SCREW,CAP-HFH M8X1.25X20 CL8.8 Z&Y | 1 | $0.68 | |
| 23 | 0402-306 | SWITCH,BRAKE PRESSURE | 1 | $129.95 |
