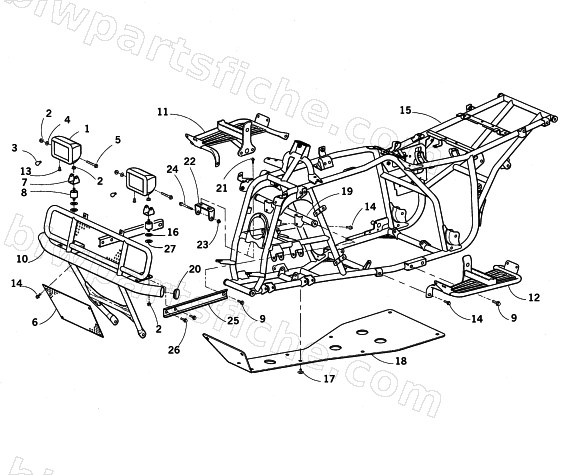

2000 Arctic Cat 500 4X4 () — FRAME AND RELATED PARTS
2000 500 4X4 ()
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0409-001 | HEAD LIGHT-ASSY | 1 | $118.95 | |
| 2 | 8424-802 | NUT,HEX-FLG M8X1.25 CL8 Z&Y | 1 | $0.54 | |
| 3 | 0409-005 | BULB,HEAD LIGHT | 1 | $32.95 | |
| 4 | 8053-242 | WASHER,LOCK-5/16 EXT TOOTH TYP A Z&Y | 1 | $0.12 | |
| 5 | 8408-850 | SCREW,CAP-HFH M8X1.25X50 CL8.8 Z&Y | 1 | $1.09 | |
| 6 | 0406-175 | SCREEN,BUMPER-LWR | 1 | $41.95 | |
| 7 | 0406-261 | YOKE,HEADLIGHT | 1 | $4.40 | |
| 8 | 0406-762 | MOUNT, HEADLIGHT | 1 | $20.63 | |
| 9 | 8409-020 | SCREW,CAP-HFH M10X1.25X20 CL10.9 Z&Y | 1 | $0.54 | |
| 10 | 0506-294 | BUMPER,FR-WELD'T(BLACK) | 1 | $293.95 | |
| 11 | 0506-959 | FOOTREST, RH - BLACK | 1 | $328.95 | |
| 12 | 0506-960 | FOOTREST, LH - BLACK | 1 | $371.95 | |
| 13 | 0123-950 | SCREW-SELF TAP 6-20X1/2 | 1 | $0.26 | |
| 14 | 8408-816 | SCREW,CAP-HFH M8X1.25X16 CL8.8 Z&Y | 1 | $0.68 | |
| 15 | 0506-676 | FRAME, MAIN-ASSY (400/500) | 1 | $1,073.29 | |
| 16 | 0423-101 | SCREW,BODY-6MM | 1 | $2.06 | |
| 18 | 0406-354 | PANEL,BELLY | 1 | $163.95 | |
| 19 | 0506-079 | TUBE,CROSS BUMPER MOUNT-WELD'T | 1 | $27.95 | |
| 20 | 0406-130 | CAP,BUMPER(RDR17-1420) | 1 | $5.51 | |
| 21 | 8408-820 | SCREW,CAP-HFH M8X1.25X20 CL8.8 Z&Y | 1 | $0.68 | |
| 22 | 0506-149 | BRKT,FR GEAR CASE-UPR WELD'T | 1 | $104.95 | |
| 23 | 8428-002 | NUT,HEX FLG- CLINCH LOCK- M10-1.25 Z&Y | 1 | $5.09 | |
| 24 | 3423-010 | BOLT, 10X110 | 1 | $5.51 | |
| 25 | 1506-117 | CHANNEL, BUMPER MOUNTING-WELD'T BLACK | 1 | $79.95 | |
| 26 | 8408-812 | SCREW,CAP-HFH M8X1.25X12 CL8.8 Z&Y | 1 | $1.78 | |
| 27 | 3423-204 | WASHER | 1 | $1.95 |
