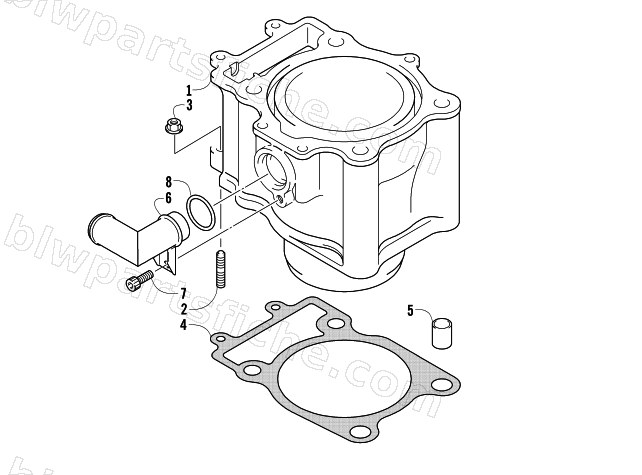

CYLINDER ASSEMBLY
2000 500 4X4 ()
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3402-364 | CYLINDER (500 ATV) | 1 | $1,237.95 | |
| 2 | 3423-090 | BOLT, CYLINDER STUD-M6X20 | 1 | $2.95 | |
| 3 | 3007-373 | NUT | 1 | $3.16 | |
| 4 | 3402-365 | GASKET,CYLINDER | 1 | $33.95 | |
| 5 | 3423-088 | PIN, CYLINDER HEAD KNOCK(ALIGMENT) | 1 | $4.54 | |
| 6 | 3413-006 | UNION, WATER HOSE | 1 | $56.95 | |
| 7 | 3423-882 | BOLT,UNION-6X16 | 1 | $3.30 | |
| 8 | 3423-058 | O RING, D:2.7, ID:21.4 | 1 | $4.40 |
