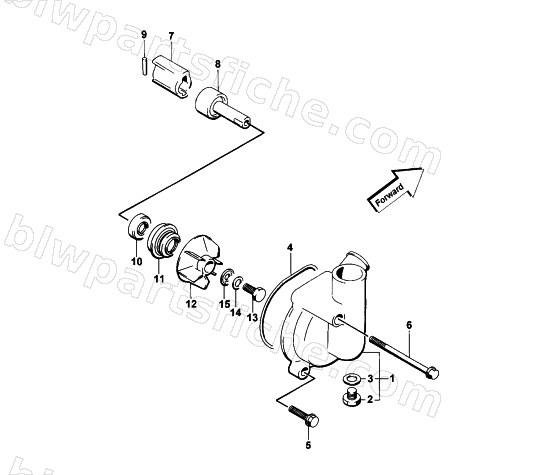

WATER PUMP ASSEMBLY
2000 400 4X4 ()
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3402-354 | CASE COMP,WATER PUMP | 1 | $164.95 | |
| 2 | 3423-185 | BOLT | 1 | $12.35 | |
| 3 | 3402-436 | WASHER | 1 | $1.92 | |
| 4 | 3423-078 | O RING, WATER PUMP CASE | 1 | $17.87 | |
| 5 | 3007-515 | BOLT,WATER INLET CONNECTOR | 1 | $3.16 | |
| 6 | 3007-370 | BOLT,CYLINDER HEAD COVER NO. 2 | 1 | $3.95 | |
| 7 | 3413-011 | JOINT,WATER PUMP DRIVE | 1 | $56.95 | |
| 8 | 3413-002 | SHAFT, WATER PUMP | 1 | $190.95 | |
| 9 | 3423-046 | PIN ,M4X15.8 | 1 | $3.30 | |
| 10 | 3003-356 | SEAL,PUMP DRIVE,M10 | 1 | $12.35 | |
| 11 | 3005-909 | SEAL, MECHANICAL WATER PUMP | 1 | $66.95 | |
| 12 | 3413-001 | IMPELLER, WATER PUMP | 1 | $54.95 | |
| 13 | 3003-426 | BOLT, 6 X 13 YEL CHROM. | 1 | $2.75 | |
| 14 | 3003-431 | WASHER,6MM | 1 | $3.44 | |
| 15 | 3003-432 | WASHER,6MM | 1 | $3.85 |
