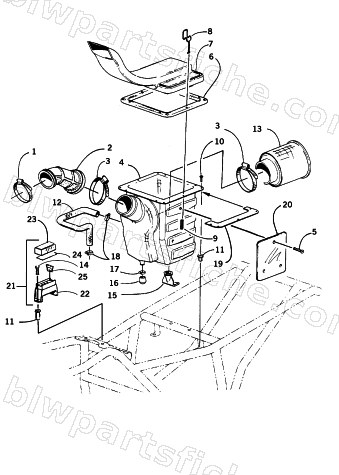

AIR INTAKE ASSEMBLY
2000 400 4X4 ()
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0423-066 | CLAMP,HOS-WORM 50mmX9mm (40-60 NOMA) | 1 | $6.47 | |
| 2 | 0470-305 | BOOT,AIR CLEANER | 1 | $47.95 | |
| 3 | 0423-018 | CLAMP,HOSE-WORM (NORMA 60-80) | 1 | $6.47 | |
| 4 | 0470-337 | HOUSING,AIR CLEANER W/PLATE | 1 | $331.95 | |
| 5 | 0623-301 | SCREW,SELF TAP-HWH 10X1/2 AB Z&Y | 1 | $0.12 | |
| 6 | 0470-343 | GASKET,AIR CLEANER/SNORKEL | 1 | $37.95 | |
| 7 | 0470-383 | SNORKLE,AIR CLEANER | 1 | $86.95 | |
| 8 | 0470-307 | CLAMP,AIR CLEANER | 1 | $6.89 | |
| 9 | 0423-037 | SPRING,AIR CLEANER | 1 | $0.65 | |
| 10 | 0623-121 | SCREW,MACH-PHTRH #10-32X3/4 Z&Y | 1 | $4.82 | |
| 11 | 0123-010 | NUT,EXPANSION 10-32 | 1 | $6.75 | |
| 12 | 0410-004 | HOSE, CRANK CASE VENT | 1 | $39.95 | |
| 13 | 0470-391 | FILTER, AIR CLEANER | 1 | $47.95 | |
| 14 | 0423-068 | SCREW,MACH-#10-32X3/4(BLK) | 1 | $0.35 | |
| 15 | 0470-442 | VALVE, AIR CLEANER | 1 | $13.73 | |
| 16 | 1673-272 | CAP,FITTING-RUBBER | 1 | $2.75 | |
| 17 | 0423-047 | CLAMP,HOSE- SPRING .675" ID X .38" | 1 | $1.95 | |
| 18 | 0423-045 | CLAMP,HOSE-SPRING(.685"ID X.38") | 1 | $1.78 | |
| 19 | 0470-351 | SUPPORT, AIR CLEANER | 1 | $20.63 | |
| 20 | 0406-356 | PLATE,HEAT-AIR INTAKE | 1 | $40.95 | |
| 21 | 0530-001 | FUSE BOX-ASSY | 1 | $33.95 | |
| 24 | 0411-271 | DECAL,FUSE BLOCK | 1 | $3.95 | |
| 25 | 0630-057 | FUSE,10 AMP ATO | 1 | $8.95 | |
| 25 | 0630-058 | FUSE,15 AMP ATO | 1 | $8.21 |
