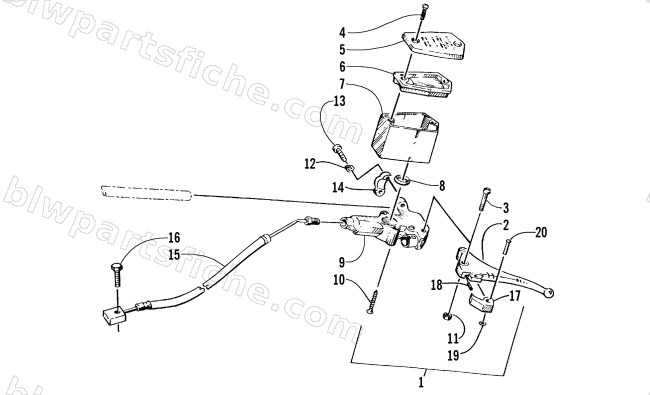

HYDRAULIC BRAKE CONTROL ASSEMBLY
2000 400 2X4
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0502-387 | MASTER CYLINDER - ASSEMBLY | 1 | $199.95 | |
| 2 | 0402-423 | LEVER,BRAKE | 1 | $64.95 | |
| 3 | 0623-430 | BOLT, LEVER MOUNTING | 1 | $4.68 | |
| 4 | 0623-506 | SCREW,COVER-MASTER CYLINDER | 1 | $1.78 | |
| 5 | 0602-742 | COVER,MASTER CYL HYD BRAKE | 1 | $19.25 | |
| 6 | 0602-741 | GASKET,COVER-MASTER CYL HYD BRAKE | 1 | $27.95 | |
| 7 | 0602-740 | RESERVOIR,HYD BRAKE | 1 | $60.95 | |
| 8 | 0602-587 | O-RING, RESERVOIR-MASTER CYL. | 1 | $12.35 | |
| 10 | 0623-432 | SCREW,RESERVOIR MOUNTING | 1 | $3.16 | |
| 11 | 0623-056 | NUT,LOCK M6X1 | 1 | $0.40 | |
| 12 | 8052-212 | WASHER,LOCK-1/4 INTL TOOTH TYP A Z&Y | 1 | $0.26 | |
| 13 | 0623-613 | SCREW,CAP-TSH-HYDRAULIC BRAKE | 1 | $2.06 | |
| 14 | 0602-907 | CLAMP,MNTG-MASTER CYL | 1 | $34.95 | |
| 15 | 0437-073 | KIT-HOSE,BRAKE MASTER CYLINDER | 1 | $135.95 | |
| 16 | 8476-625 | SCREW,MACH-TSTRH M6X1.0X25 Z&Y | 1 | $1.78 | |
| 17 | 1402-034 | LOCK, BRAKE LEVER | 1 | $6.75 | |
| 18 | 0402-245 | SPRING,PARKING BRAKE | 1 | $5.95 | |
| 19 | 0423-090 | NUT,PRESS ON (PUSHNUT)-1/8 STUD | 1 | $0.40 | |
| 20 | 0402-246 | PIN, PARKING BRAKE | 1 | $0.95 |
