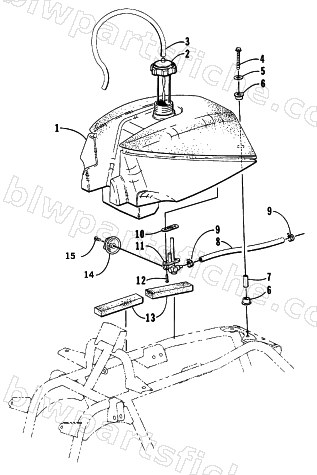

FUEL TANK ASSEMBLY
2000 400 2X4
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0570-040 | TANK,FUEL-ASSY | 1 | $399.95 | |
| 2 | 0470-369 | CAP,FUEL TANK W/GAUGE | 1 | $58.95 | |
| 3 | 0470-316 | LINE,FUEL CAP VENT | 1 | $10.97 | |
| 4 | 8476-650 | SCREW,MACH-TSTRH M6X1.0X50 Z&Y | 1 | $1.50 | |
| 5 | 0623-184 | WASHER,FLAT 1/4 X 1.0 Z&Y | 1 | $1.95 | |
| 6 | 0406-169 | BUSHING,FUEL TANK MOUNT | 1 | $2.95 | |
| 7 | 0406-170 | COLLAR,FUEL TANK MOUNT | 1 | $24.95 | |
| 8 | 0610-007 | HOSE, IMPULSE 3/16 25' | 1 | $102.95 | |
| 9 | 0423-152 | CLAMP, HOSE,-SPRING (09-45334) | 1 | $0.54 | |
| 11 | 0470-445 | VALVE, FUEL | 1 | $42.95 | |
| 12 | 8471-616 | SCREW,MACH-TSPNH M6X1.0X16 CL8.8 Z&B | 1 | $0.68 | |
| 13 | 0417-001 | PAD,FUEL TANK | 1 | $2.33 | |
| 14 | 0470-408 | KNOB, GAS VALVE | 1 | $3.30 | |
| 15 | 0423-146 | SCREW,VALVE KNOB | 1 | $1.92 |
