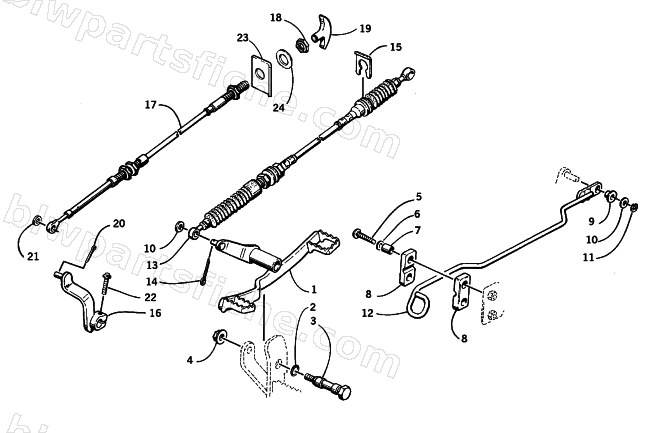

SHIFTER ASSEMBLY
2000 300 4X4 ()
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0502-114 | LEVER,FOOTSHIFT-WELD'T | 1 | $42.95 | |
| 2 | 0423-096 | O-RING .489 I.D X .070 W PARKER 2-014 | 1 | $1.64 | |
| 4 | 8422-002 | NUT,HEX-THK NYL M10X1.25 CL8 Z&Y | 1 | $0.95 | |
| 5 | 8476-630 | SCREW,MACH-TSTRH M6X1.0X30 Z&Y | 1 | $1.09 | |
| 6 | 8050-222 | WASHER,FLAT- 1/4 X .734 X .063 Z&Y | 1 | $0.68 | |
| 7 | 0402-256 | COLLAR,HI LO SHIFT | 1 | $12.95 | |
| 8 | 0406-363 | BUSHING,HIGH/LOW SHIFT | 1 | $9.59 | |
| 9 | 0423-091 | BUSHING,SHIFT | 1 | $3.16 | |
| 10 | 8050-242 | WASHER,FLAT- 5/16 X .625 X .063 Z&Y | 1 | $2.06 | |
| 11 | 3423-860 | E RING | 1 | $3.30 | |
| 12 | 0502-062 | LINKAGE,HIGH/LOW-WELD'T | 1 | $45.95 | |
| 13 | 3487-001 | CABLE,FOOT SHIFT | 1 | $260.95 | |
| 14 | 0623-175 | PIN,COTTER 3/32 X 1 | 1 | $0.40 | |
| 15 | 3423-282 | CLIP,SHIFT CABLE,M19 | 1 | $6.34 | |
| 16 | 0502-064 | ARM,2/4X4 SELECT-WELD'T-PTD | 1 | $32.95 | |
| 17 | 0487-012 | CABLE,SHIFT-2/4X4 | 1 | $235.95 | |
| 18 | 0423-099 | NUT,HEX 1/4-20 | 1 | $1.09 | |
| 19 | 0487-014 | HANDLE,CABLE SHIFT-2/4X4 | 1 | $17.87 | |
| 21 | 0423-052 | COLLAR,6MM BODY | 1 | $10.95 | |
| 22 | 8476-620 | SCREW,MACH-TSTRH M6X1.0X20 Z&Y | 1 | $0.40 | |
| 23 | 0402-274 | BACKING PLATE,2/4X4 SHIFT CABLE | 1 | $69.95 | |
| 24 | 8050-307 | WASHER,FLAT- 7/16 X .922 X .065 Z&Y | 1 | $0.15 |
