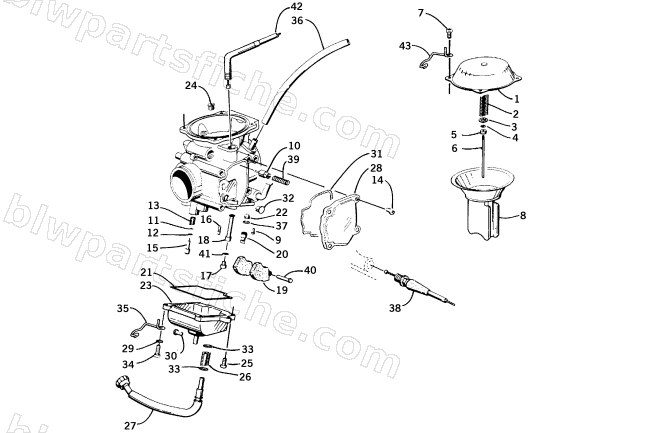

CARBURETOR

2000 300 4X4 ()

Scroll / pinch to zoom · drag to pan · double-click resets

#	Part No.	Description	Qty	Price
0	0470-348	CARBURETOR-BST31-133	1	$817.95
1	4505-069	COVER ASSY	1	$64.95
2	4505-002	SPRING	1	$13.73
3	4505-003	RING	1	$4.82
4	6505-610	E-RING	1	$2.19
5	4505-005	RING	1	$10.97
6	4505-061	JET NEEDLE	1	$26.95
7	6505-996	SCREW	1	$1.64
8	4505-058	DIAPHRAGM	1	$227.95
9	4505-009	SCREW	1	$5.51
10	4505-067	PLUNGER ASSY	1	$33.95
11	4505-011	O-RING	1	$5.09
12	4505-012	WASHER	1	$1.50
13	4505-013	SPRING	1	$5.51
14	4505-014	SCREW	1	$2.06
15	4505-016	PILOT SCREW	1	$20.63
16	4505-059	JET, PILOT - 45	1	$20.63
17	4505-060	JET, MAIN	1	$13.73
17	4505-019	MAIN JET	1	$13.73
18	4505-057	NEEDLE JET	1	$54.95
18	4505-099	NEEDLE JET	1	$54.95
19	4505-021	FLOAT ASSY	1	$74.95
20	4505-022	VALVE SEAT	1	$54.95
21	4505-044	O RING, BOWL	1	$20.63
22	4505-045	FILTER	1	$6.47
23	4505-023	FLOAT CHAMBER	1	$90.95
24	4505-024	PILOT AIR JET	1	$20.63
25	4505-025	SCREW	1	$1.50
26	4505-026	SPRING	1	$5.51
27	4505-062	CABLE ADJUST - ASSY	1	$65.95
28	4505-028	COVER	1	$47.95
29	4505-029	WASHER	1	$1.09
30	4505-030	SCREW	1	$6.34
31	4505-031	O-RING	1	$26.95
32	4505-032	CABLE GUIDE	1	$16.49
33	4505-033	WASHER	1	$1.23
34	4505-042	SCREW	1	$1.50
35	4505-065	CLIP	1	$37.95
36	4505-064	HOSE	1	$30.95
37	6505-875	O-RING	1	$1.64
38	0487-008	CABLE,CHOKE	1	$148.95
39	4505-039	SPRING	1	$3.16
40	6505-153	PIN,FLOAT ARM	1	$3.16
41	6505-006	WASHER,JET MAIN	1	$1.37
42	0487-007	CABLE,THROTTLE	1	$118.95
43	4505-063	CLIP	1	$35.95
