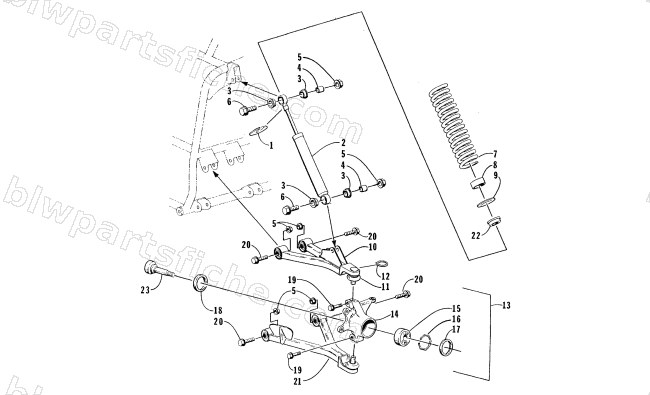

FRONT SUSPENSION ASSEMBLY
1999 400 2X4
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1603-889 | RETAINER, SPRING | 1 | $12.35 | |
| 2 | 0403-034 | SHOCK ABSORBER,FR SUSP | 1 | $140.95 | |
| 3 | 0604-310 | BUSHING,SHOCK ABSORBER | 1 | $6.75 | |
| 4 | 0403-028 | SLEEVE,SHOCK | 1 | $3.02 | |
| 5 | 8428-002 | NUT,HEX FLG- CLINCH LOCK- M10-1.25 Z&Y | 1 | $5.09 | |
| 6 | 8409-040 | SCREW,CAP-HFH M10X1.25X40 CL10.9 Z&Y | 1 | $1.50 | |
| 7 | 0403-002 | SPRING, COIL - BLACK | 1 | $69.95 | |
| 9 | 0403-013 | WASHER ,SPRING ADJUSTER | 1 | $1.95 | |
| 10 | 0503-184 | A-ARM, UPPER - RH - FABRICATION | 1 | $220.95 | |
| 10 | 0503-185 | A-ARM, UPPER - LH - FABRICATION | 1 | $220.95 | |
| 11 | 0405-483 | BALLJOINT-ASSY (DOUBLE STAKE) | 1 | $38.95 | |
| 12 | 0423-009 | CLIP,BALL JOINT | 1 | $1.37 | |
| 13 | 0505-033 | KNUCKLE,LH ASSY | 1 | $284.95 | |
| 14 | 0505-462 | KIT,KNUCKLE REPLACEMENT | 1 | $412.95 | |
| 15 | 0402-275 | BEARING, WHEEL | 1 | $58.95 | |
| 16 | 0423-034 | CLIP,BEARING | 1 | $5.51 | |
| 17 | 0402-089 | SEAL,40MMX55MMX6MM-DBL LIP(R/B 2402-611) | 1 | $4.95 | |
| 18 | 0402-069 | SEAL,40MMX58MMX7MM-3 LIP | 1 | $5.95 | |
| 19 | 0423-998 | SCREW,SHLDR-M10X30 CL10.9 BLK (W/ PATCH) | 1 | $2.61 | |
| 20 | 8409-060 | SCREW,CAP-HFH M10X1.25X60 CL10.9 Z&Y | 1 | $3.71 | |
| 21 | 0503-200 | A-ARM, LOWER - FABRICATION | 1 | $251.95 | |
| 22 | 0403-027 | RETAINER,SPRING-LWR | 1 | $6.20 | |
| 23 | 0402-183 | AXLE,STUB-18MM | 1 | $45.95 |
