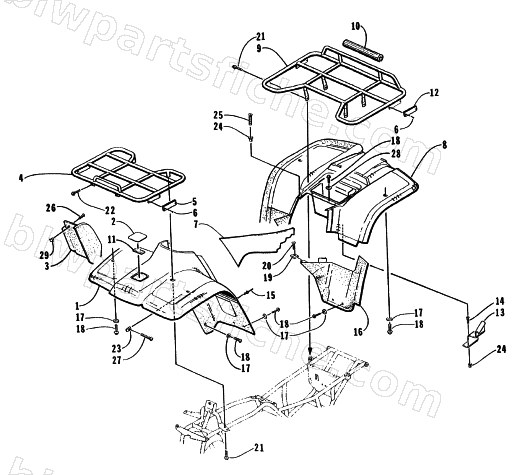

BODY PANEL ASSEMBLY
1999 400 2X4
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0506-266 | PANEL,FENDER-FR ROUTED BURGUNDY | 1 | $206.95 | |
| 2 | 0506-265 | COVER,RAD ACCESS-ASSY(BRG) | 1 | $15.95 | |
| 3 | 0406-140 | FLARE,FR RH MOLDED-ECONO-BLACK | 1 | $74.95 | |
| 3 | 0406-141 | FLARE,FR LH (ECONO) BLACK | 1 | $79.95 | |
| 4 | 0506-191 | RACK,FR | 1 | $216.95 | |
| 5 | 0606-526 | REFLECTOR,FRONT-YELLOW | 1 | $3.02 | |
| 6 | 0623-269 | CLIP, CHRISTMAS TREE | 1 | $1.23 | |
| 7 | 0506-268 | PANEL,SIDE-RH ROUTED BURGUNDY | 1 | $21.95 | |
| 7 | 0506-269 | PANEL,SIDE-LH ROUTED BURGUNDY | 1 | $24.95 | |
| 8 | 0506-267 | PANEL,FENDER-RR ROUTED BURGUNDY | 1 | $395.95 | |
| 9 | 0506-190 | RACK,RR-(BLACK) | 1 | $929.95 | |
| 10 | 0406-293 | WRAP,TUBE-RR RACK | 1 | $41.95 | |
| 11 | 0417-002 | FOAM,RADIATOR ACCESS PANEL-CTL | 1 | $4.95 | |
| 12 | 0606-029 | REFLECTOR, RED | 1 | $13.73 | |
| 13 | 0406-297 | PLATE,HEAT-RR PNL | 1 | $16.49 | |
| 14 | 0123-549 | SCREW,MACH-PHTRH 10-32 X 1.00 Z&Y | 1 | $0.29 | |
| 15 | 0423-046 | RIVET, PLASTIC - DH - .246X.157-.394 BLK | 1 | $1.09 | |
| 16 | 0406-084 | FENDER EXTENSION-RH-MOLDED-BLACK | 1 | $158.95 | |
| 16 | 0406-085 | FENDER EXTENSION-LH-MOLDED-BLACK | 1 | $90.95 | |
| 17 | 0423-101 | SCREW,BODY-6MM | 1 | $2.06 | |
| 18 | 8474-616 | SCREW,MACH-TSFH M6X1.0X16 CL8.8 BLK | 1 | $12.35 | |
| 19 | 0423-060 | CLIP, TINERMAN -C07508-8A-4 | 1 | $1.95 | |
| 20 | 0623-309 | SCREW, SELF TAP-PHPNH 12-11X3/4 A Z&B | 1 | $0.40 | |
| 21 | 8409-020 | SCREW,CAP-HFH M10X1.25X20 CL10.9 Z&Y | 1 | $0.54 | |
| 22 | 8408-812 | SCREW,CAP-HFH M8X1.25X12 CL8.8 Z&Y | 1 | $1.78 | |
| 23 | 0423-031 | NUT,SPEED M6 X 1.0 U-TYPE | 1 | $0.95 | |
| 24 | 0123-010 | NUT,EXPANSION 10-32 | 1 | $6.75 | |
| 25 | 0423-068 | SCREW,MACH-#10-32X3/4(BLK) | 1 | $0.35 | |
| 26 | 8477-610 | SCREW,MACH-TSTRH M6X1.0X10 Z&BLK | 1 | $0.68 | |
| 27 | 8477-616 | SCREW,MACH-TSTRH M6X1.0X16 Z&BLK | 1 | $0.68 | |
| 28 | 0623-184 | WASHER,FLAT 1/4 X 1.0 Z&Y | 1 | $1.95 | |
| 29 | 0423-077 | NUT,T-W/TEETH (6MM) | 1 | $3.44 |
