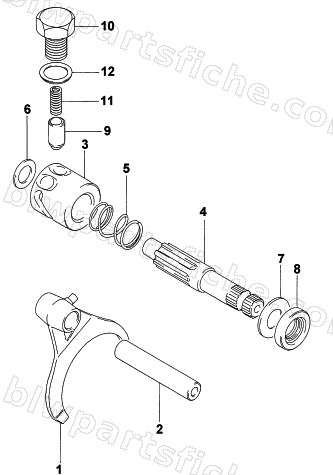

DIFFERENTIAL LOCK ASSEMBLY
1999 300 4X4
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3446-205 | FORK,DIFF SHIFT | 1 | $122.95 | |
| 2 | 3446-202 | SHAFT,GEAR SHIFT FORK | 1 | $45.95 | |
| 3 | 3446-203 | CAM,FR DIFF LOCKING | 1 | $90.95 | |
| 4 | 3446-204 | SHAFT,FR DIFF CAM | 1 | $122.95 | |
| 5 | 3402-311 | SPRING,M17 | 1 | $4.40 | |
| 6 | 3423-300 | WASHER,M10X18X1 | 1 | $2.75 | |
| 7 | 3423-339 | WASHER, LH-M12X24 | 1 | $3.02 | |
| 8 | 3402-076 | OIL SEAL,M12X22X9 | 1 | $16.49 | |
| 9 | 3446-119 | STOPPER, SHIFT CAM | 1 | $20.63 | |
| 10 | 3446-046 | PLUG, OIL | 1 | $20.63 | |
| 11 | 3402-089 | SPRING,COMPRESSION,M5 | 1 | $4.95 | |
| 12 | 3402-012 | GASKET, OIL PLUG,M13.8X18.8X0.4 | 1 | $10.97 |
