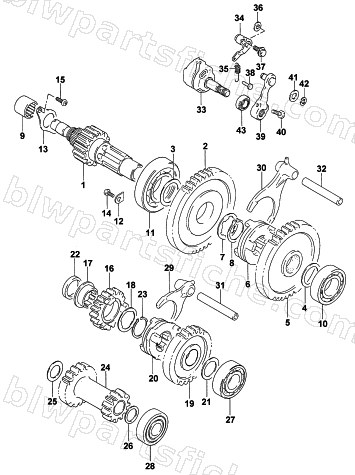

SECONDARY TRANSMISSION ASSEMBLY
1999 250 2X4
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3446-179 | SHAFT,OUTPUT | 1 | $429.95 | |
| 2 | 3446-184 | GEAR,SUB DRIVEN | 1 | $205.95 | |
| 8 | 3423-907 | CIRCLIP,FASTENER | 1 | $6.75 | |
| 9 | 3402-278 | ROLLER BEARING,M18X26X16 | 1 | $66.95 | |
| 10 | 3004-209 | BEARING, BALANCER SHAFT-LH,BALL,M25X52X1 | 1 | $42.95 | |
| 11 | 3402-055 | BALL BEARING ,M35X72X17 | 1 | $112.95 | |
| 12 | 3446-031 | RETAINER, BEARING | 1 | $5.78 | |
| 13 | 3446-154 | RETAINER,REAR BEARING | 1 | $10.95 | |
| 14 | 3007-574 | SCREW,6X12 | 1 | $2.47 | |
| 15 | 0693-321 | SCREW | 1 | $1.79 | |
| 16 | 3446-275 | GEAR,SUB DRIVE NO.1 | 1 | $144.95 | |
| 17 | 3446-259 | BUSH, SUB T/M DRIVE NO.1 GEAR | 1 | $64.95 | |
| 18 | 3423-036 | WASHER,25MM | 1 | $4.54 | |
| 19 | 3446-182 | GEAR COMP,SUB DRIVE NO.2 | 1 | $156.95 | |
| 20 | 3446-183 | DOG,SUB DRIVE SLIDING | 1 | $118.95 | |
| 21 | 3402-195 | SHIM,20MM | 1 | $4.95 | |
| 22 | 3402-207 | SPACER,M25X34X5.5 | 1 | $26.95 | |
| 23 | 3423-066 | CIRCLIP,M25 | 1 | $6.47 | |
| 24 | 3446-272 | GEAR, IDLER | 1 | $255.95 | |
| 25 | 3402-205 | SPACER,M17X24X4.5 | 1 | $20.63 | |
| 26 | 3423-319 | WASHER (M15X26X1.0) | 1 | $2.95 | |
| 27 | 3003-261 | BEARING, CRANKSHAFT LH,M20X47X14 | 1 | $34.95 | |
| 28 | 3402-217 | BALL BEARING,M15X42X13 | 1 | $58.95 | |
| 29 | 3446-185 | FORK,SUB GEAR SHIFT 1 | 1 | $122.95 | |
| 31 | 3446-271 | SHAFT, GEAR SHIFT FORK | 1 | $47.95 | |
| 33 | 3446-186 | CAM COMP,SUB GEAR SHIFT | 1 | $133.95 | |
| 34 | 3446-187 | STOPPER COMP, SUB SHIFT CAM | 1 | $20.63 | |
| 35 | 3402-241 | SPRING,TORSION.M9 | 1 | $9.95 | |
| 36 | 3423-141 | WASHER, GEAR SHIFT CAM STOPPER-M6X14 | 1 | $3.95 | |
| 37 | 3423-240 | BOLT,6MM | 1 | $3.02 | |
| 39 | 3446-116 | ARM COMP, SUB-TRANSMISSION GEAR SHIFT | 1 | $122.95 | |
| 40 | 3423-884 | BOLT,CTUTCH RELEASE ARM-M6X20 | 1 | $2.61 | |
| 41 | 3423-204 | WASHER | 1 | $1.95 | |
| 42 | 3423-860 | E RING | 1 | $3.30 | |
| 43 | 3402-076 | OIL SEAL,M12X22X9 | 1 | $16.49 |
