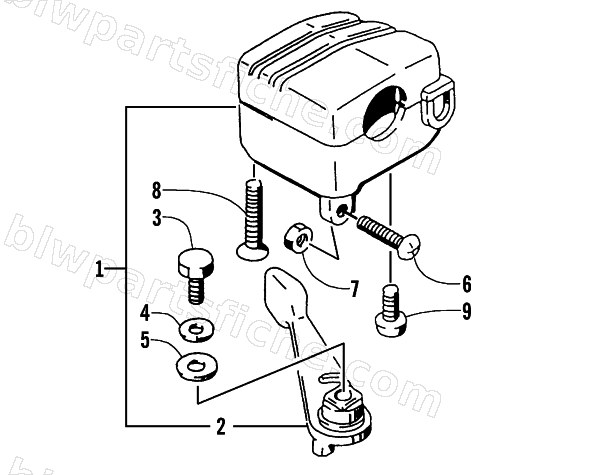

THROTTLE CASE ASSEMBLY
1998 500 4X4
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3509-003 | CASE ASSY,THROTTLE | 1 | $196.95 | |
| 2 | 3409-001 | LEVER,THROTTLE | 1 | $26.95 | |
| 3 | 3007-392 | BOLT | 1 | $3.95 | |
| 4 | 3004-447 | WASHER, LOCK 6MM | 1 | $3.16 | |
| 5 | 3003-030 | WASHER, FLAT | 1 | $2.75 | |
| 6 | 3423-014 | SCREW,5MM | 1 | $2.06 | |
| 7 | 3423-327 | NUT,5MM | 1 | $2.33 | |
| 8 | 3423-199 | SCREW, 5X30 | 1 | $1.78 | |
| 9 | 3007-695 | SCREW,5X12 | 1 | $2.47 |
