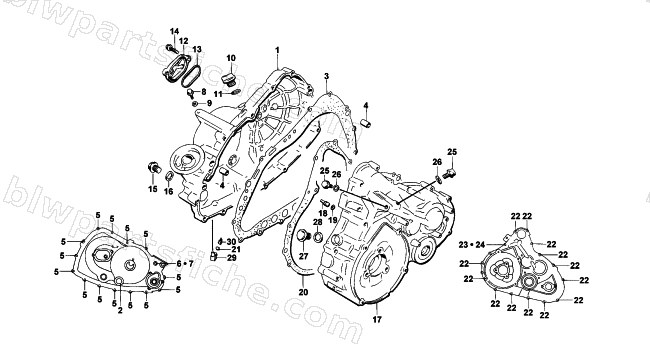

CRANKCASE COVER ASSEMBLY
1998 454 4X4
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3402-199 | COVER, CLUTCH | 1 | $682.95 | |
| 2 | 3402-112 | LENS, OIL INSPECTION | 1 | $47.95 | |
| 3 | 3402-108 | GASKET, SUB TRANS | 1 | $56.95 | |
| 4 | 3423-088 | PIN, CYLINDER HEAD KNOCK(ALIGMENT) | 1 | $4.54 | |
| 5 | 3007-503 | BOLT,MAGNETO COVER | 1 | $3.16 | |
| 6 | 3423-097 | BOLT, CLUTCH COVER-M6X70 | 1 | $4.54 | |
| 7 | 3003-290 | GASKET,CHECK VALVE,6MM | 1 | $3.85 | |
| 8 | 3007-457 | BOLT | 1 | $3.16 | |
| 9 | 3402-009 | WASHER, DRIVEN, M6.2X11X1.2 | 1 | $2.47 | |
| 10 | 3402-042 | PLUG,20MM | 1 | $20.63 | |
| 11 | 3423-055 | O RING D:3.1 ID:16.8 | 1 | $2.75 | |
| 12 | 3402-100 | CAP, INSPECTION | 1 | $48.95 | |
| 13 | 3402-101 | O RING, INSPECTION CAP | 1 | $12.35 | |
| 14 | 3423-859 | SCREW | 1 | $2.06 | |
| 15 | 3402-037 | PLUG,14MM | 1 | $10.97 | |
| 16 | 3402-012 | GASKET, OIL PLUG,M13.8X18.8X0.4 | 1 | $10.97 | |
| 17 | 3402-106 | COVER SET, TRANSFER | 1 | $486.95 | |
| 18 | 3402-097 | JET, AIR | 1 | $29.95 | |
| 19 | 3423-051 | O RING | 1 | $2.75 | |
| 20 | 3402-538 | GASKET, TRANSFER COVER | 1 | $54.95 | |
| 21 | 3423-120 | CLIP, WATER DRAIN TUBE HOSE,M8 | 1 | $2.06 | |
| 22 | 3007-496 | BOLT,CYL HEAD | 1 | $3.16 | |
| 23 | 3423-909 | BOLT,CRANK M6X70 | 1 | $4.13 | |
| 25 | 3007-407 | BOLT,GROUND | 1 | $3.16 | |
| 26 | 3402-436 | WASHER | 1 | $1.92 | |
| 27 | 3402-192 | PLUG, ALLEN HEAD,16MM | 1 | $13.95 | |
| 28 | 3402-013 | GASKET, M16X22X2 | 1 | $3.16 | |
| 29 | 3413-009 | UNION, WATER DRAIN | 1 | $29.95 | |
| 30 | 3413-008 | TUBE, WATER DRAIN | 1 | $13.73 |
