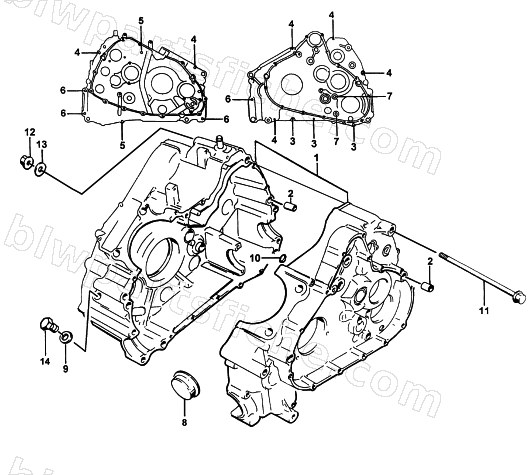

CRANKCASE ASSEMBLY
1998 454 4X4
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3402-388 | CRANKCASE SET (400 ATV) | 1 | $2,246.95 | |
| 2 | 3423-088 | PIN, CYLINDER HEAD KNOCK(ALIGMENT) | 1 | $4.54 | |
| 3 | 3423-878 | BOLT,CRANKCASE-M6X45 | 1 | $3.30 | |
| 4 | 3423-909 | BOLT,CRANK M6X70 | 1 | $4.13 | |
| 5 | 3423-094 | BOLT, CRANKCASE-M6X90 | 1 | $4.54 | |
| 6 | 3007-399 | BOLT,INLET PIPE | 1 | $3.85 | |
| 7 | 3423-093 | BOLT, CRANKCASE-M8X85 | 1 | $3.95 | |
| 9 | 3402-011 | GASKET,OIL DRAIN PLUG- M12.1X16.2X3.7 | 1 | $3.44 | |
| 10 | 3423-052 | O RING, D:1.9, ID:8.6 | 1 | $10.97 | |
| 11 | 3423-009 | BOLT, 10X215 | 1 | $10.97 | |
| 12 | 3423-024 | NUT,10MM | 1 | $10.95 | |
| 13 | 3007-410 | WASHER | 1 | $2.75 | |
| 14 | 3423-095 | PLUG, OIL GAL(BOLT),M12X16(R/B 3423-912) | 1 | $6.95 |
