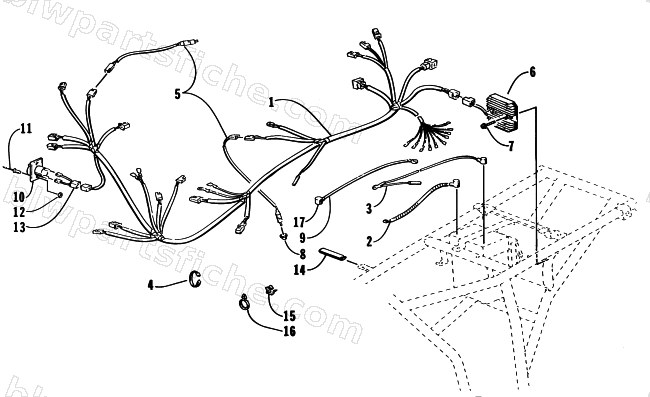

1998 Arctic Cat 454 2X4 — WIRING HARNESS ASSEMBLY
1998 454 2X4
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0486-007 | HARNESS,MAIN | 1 | $499.95 | |
| 2 | 0445-003 | CABLE,BATTERY-SOLENOID (16" RED #8) | 1 | $29.95 | |
| 3 | 0445-002 | CABLE,BATT/GRND(BLK) | 1 | $34.95 | |
| 4 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 5 | 0409-009 | SWITCH,BRAKE-ASSY | 1 | $82.95 | |
| 6 | 3430-072 | RECTIFIER ASSY | 1 | $414.95 | |
| 7 | 8476-625 | SCREW,MACH-TSTRH M6X1.0X25 Z&Y | 1 | $1.78 | |
| 8 | 0402-168 | RETAINER,SWITCH | 1 | $10.95 | |
| 9 | 0445-004 | CABLE,BATT/EL ST MTR (RED) | 1 | $29.95 | |
| 14 | 0406-266 | SLEEVE,CABLE CLIP | 1 | $1.95 | |
| 15 | 0423-065 | BASE,WIRE TIE(AS23TA00120BL) ASC | 1 | $1.95 | |
| 16 | 0423-075 | TIE,CABLE-PUSH MOUNT | 1 | $0.95 | |
| 17 | 0645-019 | BOOT,TERMINAL-BATTERY | 1 | $4.40 |
