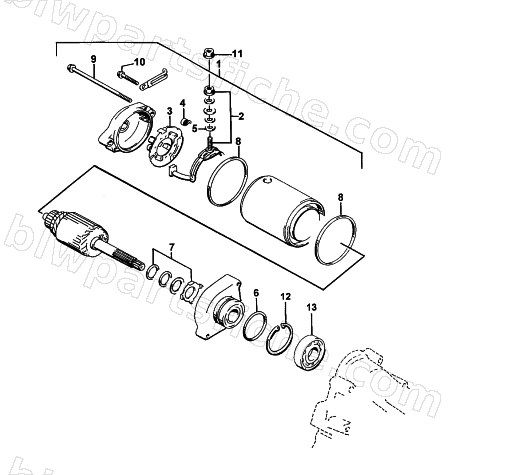

STARTER MOTOR ASSEMBLY
1998 454 2X4
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3545-014 | MOTOR ASSY,STARTING | 1 | $410.95 | |
| 2 | 3008-094 | TERMINAL, SET BRUSH | 1 | $93.95 | |
| 3 | 3008-095 | HOLDER SET, BRUSH | 1 | $88.95 | |
| 4 | 3008-096 | SPRING, BRUSH | 1 | $6.75 | |
| 5 | 3008-164 | O-RING | 1 | $6.95 | |
| 6 | 3423-084 | O RING | 1 | $23.39 | |
| 7 | 3436-001 | WASHER SET | 1 | $12.95 | |
| 8 | 3008-553 | O-RING, STARTER MOTOR | 1 | $19.25 | |
| 9 | 3423-085 | BOLT | 1 | $17.87 | |
| 10 | 3007-504 | BOLT,OIL PAN | 1 | $2.75 | |
| 11 | 3423-195 | NUT,STARTER MOTOR,6MM | 1 | $2.61 | |
| 12 | 3423-201 | CIRCLIP,FASTENER | 1 | $4.95 | |
| 13 | 3402-043 | BEARING,BALL,M12X28X8 | 1 | $41.95 |
