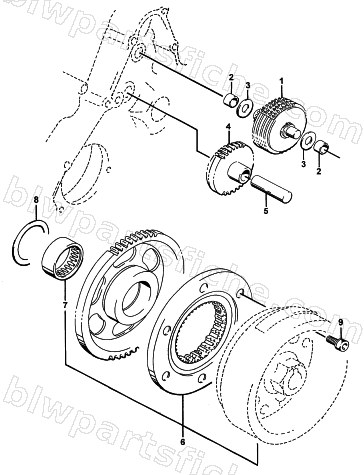

STARTER CLUTCH ASSEMBLY
1998 454 2X4
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3402-123 | LIMITER ASSY, ST ID GR, NO.1 | 1 | $321.95 | |
| 2 | 3402-125 | BUSH, LIMITER GEAR SHAFT | 1 | $50.95 | |
| 3 | 3423-103 | WASHER, THRUST, LIMITER GR SHAFT-M10X22 | 1 | $2.61 | |
| 4 | 3402-124 | GEAR, STARTER IDLE, NO.2 | 1 | $112.95 | |
| 5 | 3423-042 | PIN, STARTER IDLE GEAR, NO.2,12MM | 1 | $22.95 | |
| 6 | 3402-380 | CLUTCH SET,STARTER | 1 | $494.95 | |
| 7 | 3402-063 | ROLLER BEARING ,M31X39X17.8 | 1 | $90.95 | |
| 8 | 3423-104 | WASHER, STARTER CLUTCH GEAR-M35X50 | 1 | $10.97 | |
| 9 | 3423-901 | BOLT,STARTER CLUTCH | 1 | $4.13 |
