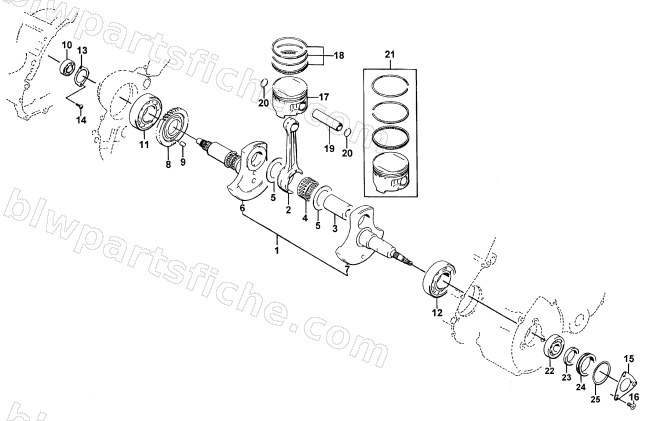

CRANKSHAFT ASSEMBLY
1998 454 2X4
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3402-115 | CRANKSHAFT ASSY | 1 | $1,358.95 | |
| 2 | 3402-111 | CONNROD | 1 | $181.95 | |
| 3 | 3402-116 | PIN, CRANK | 1 | $126.95 | |
| 4 | 3402-064 | ROLLER BEARING ,M35X44X26 | 1 | $122.95 | |
| 5 | 3423-030 | WASHER, M35X55X1 | 1 | $12.35 | |
| 6 | 3402-193 | CRANKSHAFT SET, RH | 1 | $784.95 | |
| 7 | 3402-118 | CRANKSHAFT, L | 1 | $591.95 | |
| 10 | 3402-044 | BEARING,M17X40X12 | 1 | $79.95 | |
| 11 | 3402-058 | BEARING,BALL, M40X80X18 | 1 | $156.95 | |
| 12 | 3402-054 | BALL BEARING ,M35X80X21 | 1 | $156.95 | |
| 13 | 3402-120 | RETAINER, CRANKSHAFT BEARING, R | 1 | $17.87 | |
| 14 | 3423-017 | SCREW,5MM | 1 | $2.33 | |
| 15 | 3402-188 | RETAINER, OIL SEAL | 1 | $17.87 | |
| 16 | 3423-018 | SCREW, 6X12 | 1 | $2.61 | |
| 17 | 3402-113 | PISTON | 1 | $164.95 | |
| 18 | 3402-114 | RING SET, PISTON | 1 | $94.95 | |
| 18 | 3436-009 | RING SET,+020 | 1 | $94.95 | |
| 18 | 3436-010 | RING SET,+040 | 1 | $94.95 | |
| 19 | 3402-110 | PIN, PISTON | 1 | $58.95 | |
| 20 | 3423-069 | CIRCLIP,M21 | 1 | $3.02 | |
| 21 | 3436-002 | PISTON SET, +020 | 1 | $205.95 | |
| 22 | 3402-051 | BEARING,M25 | 1 | $62.95 | |
| 23 | 3402-070 | OIL SEAL,M25X36X6 | 1 | $45.95 | |
| 24 | 3423-542 | SPACER | 1 | $52.95 | |
| 25 | 3423-063 | O RING, ID:44, OD:2.4 | 1 | $20.63 |
