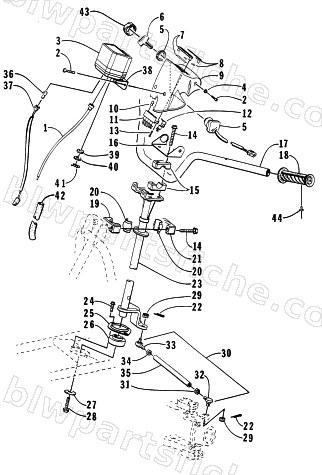

STEERING ASSEMBLY
1998 400 4X4
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0487-005 | CABLE,SPEEDO | 1 | $55.95 | |
| 2 | 8477-616 | SCREW,MACH-TSTRH M6X1.0X16 Z&BLK | 1 | $0.68 | |
| 3 | 0420-031 | SPEEDO, ASSY (MI/KL) | 1 | $231.95 | |
| 4 | 0423-052 | COLLAR,6MM BODY | 1 | $10.95 | |
| 5 | 3430-028 | SWITCH ASSY,IGN | 1 | $180.95 | |
| 6 | 3409-007 | KEY, BLANK (C SERIES) | 1 | $30.95 | |
| 6 | 3409-011 | KEY, BLANK ( D SERIES) | 1 | $30.95 | |
| 7 | 0420-011 | BEZEL/LENS,WARNING- ASSY | 1 | $20.63 | |
| 8 | 0420-012 | BEZEL/LENS,SHIFT- ASSY | 1 | $15.95 | |
| 9 | 0405-019 | INSTRUMENT POD | 1 | $54.95 | |
| 10 | 0420-013 | BULB,LIGHT BAR | 1 | $5.95 | |
| 11 | 0420-001 | LIGHT,WARNING- ASSY | 1 | $112.95 | |
| 12 | 0420-004 | LIGHT,SHIFT INDICATOR- ASSY | 1 | $109.95 | |
| 13 | 0123-950 | SCREW-SELF TAP 6-20X1/2 | 1 | $0.26 | |
| 14 | 8408-860 | SCREW,CAP-HFH M8X1.25X60 CL8.8 Z&Y | 1 | $1.37 | |
| 15 | 0405-035 | CAP,STEERING ADJUSTER | 1 | $17.87 | |
| 16 | 0506-348 | BRKT,KEY SWITCH-BLACK | 1 | $58.95 | |
| 17 | 0505-418 | HANDLE BAR-BLACK | 1 | $30.95 | |
| 18 | 0405-039 | GRIP,HANDLE BAR | 1 | $20.63 | |
| 19 | 0605-171 | CAP, BEARING - STEERING POST | 1 | $19.95 | |
| 20 | 0405-020 | BEARING,STEERING POST | 1 | $2.33 | |
| 21 | 0705-064 | HSNG,BEARING-UPPER-PTD BLK | 1 | $19.25 | |
| 22 | 0623-175 | PIN,COTTER 3/32 X 1 | 1 | $0.40 | |
| 23 | 0505-012 | POST,STEERING-BLACK | 1 | $144.95 | |
| 24 | 8408-816 | SCREW,CAP-HFH M8X1.25X16 CL8.8 Z&Y | 1 | $0.68 | |
| 25 | 0602-233 | FLANGE,BRG-TWO MTG HOLE | 1 | $4.26 | |
| 26 | 1702-180 | KIT,REPLACEMENT BEARING-7/8" | 1 | $63.95 | |
| 27 | 0423-073 | WASHER,FLAT-1.38 OD X .413 ID X.134 TH | 1 | $1.50 | |
| 28 | 8409-020 | SCREW,CAP-HFH M10X1.25X20 CL10.9 Z&Y | 1 | $0.54 | |
| 29 | 8422-002 | NUT,HEX-THK NYL M10X1.25 CL8 Z&Y | 1 | $0.95 | |
| 30 | 0505-072 | TIE ROD-ASSY | 1 | $177.95 | |
| 31 | 8420-002 | NUT,HEX - M10 X 1.25 CL8 Z&Y | 1 | $0.68 | |
| 32 | 0505-874 | ROD END PKG,TIE ROD-RH THREAD | 1 | $54.95 | |
| 33 | 0505-875 | ROD END PKG,TIE ROD-LH THREAD | 1 | $54.95 | |
| 34 | 0423-013 | NUT,HEX M10-1.25(LH) Z&Y | 1 | $1.09 | |
| 35 | 0405-032 | TIE ROD | 1 | $45.95 | |
| 36 | 0620-149 | BULB,T-10 WEDGE BASE-12V 1.7W | 1 | $4.95 | |
| 37 | 0420-014 | CORD ASSY(SPEEDO) | 1 | $29.95 | |
| 38 | 0420-018 | BRKT-ASSY | 1 | $76.95 | |
| 39 | 0420-016 | MOUNT,RUBBER | 1 | $3.30 | |
| 40 | 0420-017 | PLAIN WASHER | 1 | $1.95 | |
| 41 | 0420-015 | SPLIT PIN | 1 | $3.02 | |
| 42 | 0423-067 | TUBE,LOOM-.25 ID X .40 OD X 12" LCP250 | 1 | $1.95 | |
| 43 | 0409-013 | COVER,KEY | 1 | $6.34 | |
| 44 | 8060-428 | RIVET,BLIND-DH AA56 BLK | 1 | $0.81 |
