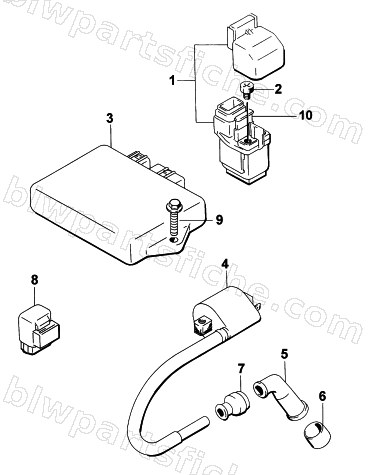

ELECTRICAL COMPONENTS ASSEMBLY
1998 400 4X4
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3530-001 | RELAY ASSY, STARTING MOTOR | 1 | $169.95 | |
| 2 | 3423-020 | SCREW,6MM | 1 | $1.95 | |
| 3 | 3430-014 | CDI UNIT | 1 | $947.95 | |
| 4 | 3530-004 | COIL ASSY, IGNITION | 1 | $180.95 | |
| 5 | 3430-007 | CAP ASSY, SPARK PLUG | 1 | $23.39 | |
| 6 | 3430-008 | SEAL SPARK PLUG | 1 | $12.35 | |
| 7 | 3430-009 | SEAL, HIGH TENSION CORD | 1 | $10.97 | |
| 8 | 3530-026 | RELAY ASSY, NEUTRAL START | 1 | $90.95 | |
| 9 | 8476-616 | SCREW,MACH-TSTRH M6X1.0X16 Z&Y | 1 | $0.40 | |
| 10 | 0630-098 | FUSE,30 AMP ATO/ATC | 1 | $8.21 |
