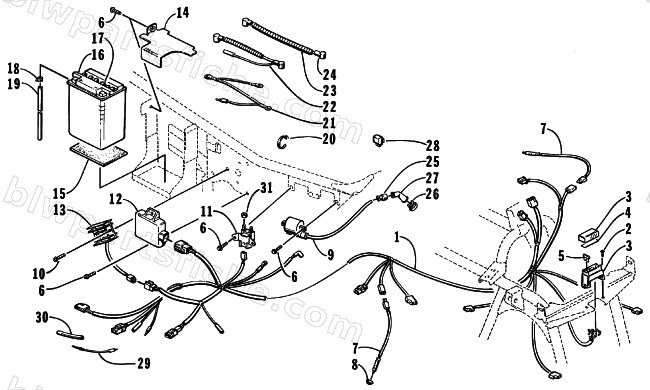

ELECTRICAL COMPONENTS
1998 300 4X4
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0486-025 | HARNESS,MAIN (99A2C/A4C) | 1 | $289.95 | |
| 2 | 0623-361 | SCREW,SELF TAP-HWH #10-24X1/2 TYP F Z&Y | 1 | $0.40 | |
| 3 | 0530-003 | FUSE BOX-ASSY(DC73801) | 1 | $31.95 | |
| 4 | 0411-084 | DECAL, FUSE BLOCK | 1 | $1.95 | |
| 5 | 0630-057 | FUSE,10 AMP ATO | 1 | $8.95 | |
| 6 | 8476-616 | SCREW,MACH-TSTRH M6X1.0X16 Z&Y | 1 | $0.40 | |
| 7 | 0409-009 | SWITCH,BRAKE-ASSY | 1 | $82.95 | |
| 8 | 0402-168 | RETAINER,SWITCH | 1 | $10.95 | |
| 9 | 3530-012 | COIL ASSY,IGNITION | 1 | $180.95 | |
| 10 | 8476-620 | SCREW,MACH-TSTRH M6X1.0X20 Z&Y | 1 | $0.40 | |
| 11 | 3530-013 | RELAY ASSY, STARTER | 1 | $169.95 | |
| 12 | 3530-011 | CDI UNIT | 1 | $936.95 | |
| 13 | 3530-014 | REGULATOR,VOLTAGE | 1 | $350.95 | |
| 14 | 0506-958 | BRACKET,BATTERY-BLACK | 1 | $30.95 | |
| 15 | 0406-380 | PAD,BATTERY | 1 | $4.26 | |
| 16 | 0745-040 | BATTERY PKG(0645-063) | 1 | $113.95 | |
| 17 | 0645-045 | BATTERY CAP | 1 | $1.92 | |
| 18 | 0645-152 | CLAMP, HOSE-BATTERY VENT | 1 | $2.47 | |
| 19 | 0645-263 | HOSE, BATTERY VENT-550MM | 1 | $3.44 | |
| 20 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 21 | 0445-010 | CABLE,BATT/GRND(BLK) | 1 | $32.95 | |
| 22 | 0445-011 | CABLE,BATT/EL ST RLY (RED) | 1 | $29.95 | |
| 23 | 0445-012 | CABLE,BATT/EL ST MTR (RED) | 1 | $29.95 | |
| 24 | 0645-019 | BOOT,TERMINAL-BATTERY | 1 | $4.40 | |
| 25 | 3430-009 | SEAL, HIGH TENSION CORD | 1 | $10.97 | |
| 26 | 3430-026 | SEAL,SPARK PLUG | 1 | $17.87 | |
| 27 | 3430-007 | CAP ASSY, SPARK PLUG | 1 | $23.39 | |
| 28 | 3530-026 | RELAY ASSY, NEUTRAL START | 1 | $90.95 | |
| 29 | 0486-012 | HARNESS,NEUTRAL JUMPER | 1 | $5.95 | |
| 30 | 0486-013 | SHRINK TUBE,NEUTRAL JUMPER | 1 | $3.95 | |
| 31 | 0624-250 | NUT,LOCK-NSL M6-1.0 SS | 1 | $0.68 |
