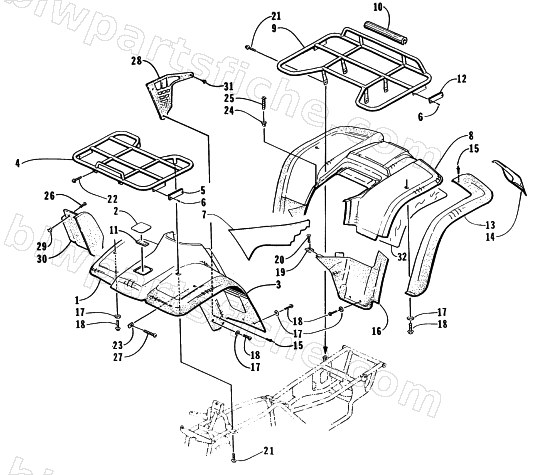

BODY PANEL ASSEMBLY
1998 300 4X4
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0506-257 | PANEL,FENDER-FR ROUTED-RED | 1 | $317.95 | |
| 2 | 1406-142 | COVER,ACCESS-RED (W/LOGO) | 1 | $20.95 | |
| 3 | 0506-274 | FLARE, FR-RH-ROUTED-BLACK | 1 | $94.95 | |
| 3 | 0506-275 | FLARE, FR-LH-ROUTED-BLACK | 1 | $94.95 | |
| 4 | 0506-191 | RACK,FR | 1 | $216.95 | |
| 5 | 0606-526 | REFLECTOR,FRONT-YELLOW | 1 | $3.02 | |
| 6 | 0623-269 | CLIP, CHRISTMAS TREE | 1 | $1.23 | |
| 7 | 0506-242 | PANEL,SIDE-RH ROUTED - RED | 1 | $126.95 | |
| 7 | 0506-243 | PANEL,SIDE-LH ROUTED - RED | 1 | $36.95 | |
| 8 | 0506-258 | PANEL,FENDER-RR ROUTED RED | 1 | $322.29 | |
| 9 | 0506-190 | RACK,RR-(BLACK) | 1 | $929.95 | |
| 10 | 0406-293 | WRAP,TUBE-RR RACK | 1 | $41.95 | |
| 11 | 0417-002 | FOAM,RADIATOR ACCESS PANEL-CTL | 1 | $4.95 | |
| 12 | 0606-029 | REFLECTOR, RED | 1 | $13.73 | |
| 13 | 0406-082 | FLARE-RR-RH-MOLDED-BLACK | 1 | $55.95 | |
| 13 | 0406-083 | FLARE-RR-LH-MOLD-BLACK | 1 | $55.95 | |
| 15 | 0423-046 | RIVET, PLASTIC - DH - .246X.157-.394 BLK | 1 | $1.09 | |
| 16 | 0506-160 | FENDER EXTENSION, RH-ROUTED-BLACK | 1 | $163.95 | |
| 16 | 0506-161 | FENDER EXTENSION, LH-ROUTED-BLACK | 1 | $163.95 | |
| 17 | 0423-101 | SCREW,BODY-6MM | 1 | $2.06 | |
| 18 | 8474-616 | SCREW,MACH-TSFH M6X1.0X16 CL8.8 BLK | 1 | $12.35 | |
| 19 | 0423-060 | CLIP, TINERMAN -C07508-8A-4 | 1 | $1.95 | |
| 20 | 0623-309 | SCREW, SELF TAP-PHPNH 12-11X3/4 A Z&B | 1 | $0.40 | |
| 21 | 8409-020 | SCREW,CAP-HFH M10X1.25X20 CL10.9 Z&Y | 1 | $0.54 | |
| 22 | 8408-812 | SCREW,CAP-HFH M8X1.25X12 CL8.8 Z&Y | 1 | $1.78 | |
| 23 | 0423-031 | NUT,SPEED M6 X 1.0 U-TYPE | 1 | $0.95 | |
| 24 | 0123-010 | NUT,EXPANSION 10-32 | 1 | $6.75 | |
| 25 | 0423-068 | SCREW,MACH-#10-32X3/4(BLK) | 1 | $0.35 | |
| 26 | 8477-610 | SCREW,MACH-TSTRH M6X1.0X10 Z&BLK | 1 | $0.68 | |
| 27 | 8476-616 | SCREW,MACH-TSTRH M6X1.0X16 Z&Y | 1 | $0.40 | |
| 28 | 0406-374 | PANEL,DEFLECTOR | 1 | $24.95 | |
| 29 | 0423-077 | NUT,T-W/TEETH (6MM) | 1 | $3.44 | |
| 31 | 0623-362 | RIVET,PLASTIC-REINSTALLABLE | 1 | $0.68 | |
| 32 | 0619-230 | FOIL,3 X 24 | 1 | $13.95 |
