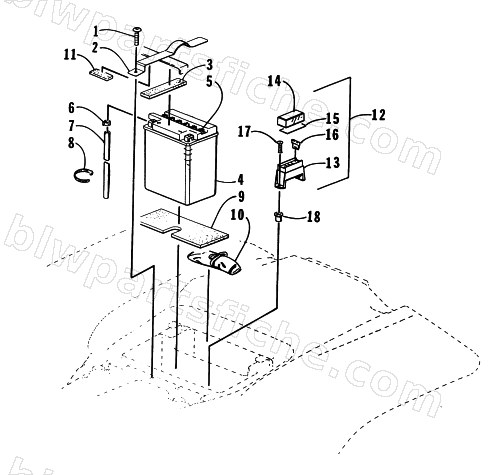

1997 Arctic Cat 2X4 — BATTERY ASSEMBLY
1997 2X4
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 8477-616 | SCREW,MACH-TSTRH M6X1.0X16 Z&BLK | 1 | $0.68 | |
| 2 | 0506-178 | STRAP,BATTERY W/PAD | 1 | $26.95 | |
| 3 | 0406-288 | PAD,BATTERY-TOP FR | 1 | $6.34 | |
| 4 | 0745-045 | BATTERY PKG (0645-165) | 1 | $124.95 | |
| 5 | 0645-045 | BATTERY CAP | 1 | $1.92 | |
| 6 | 0645-152 | CLAMP, HOSE-BATTERY VENT | 1 | $2.47 | |
| 7 | 0645-263 | HOSE, BATTERY VENT-550MM | 1 | $3.44 | |
| 8 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 9 | 0406-227 | PAD,BATTERY-LOWER | 1 | $3.57 | |
| 10 | 0444-122 | KIT, TOOL | 1 | $24.77 | |
| 11 | 0406-289 | PAD,BATTERY-TOP RR | 1 | $1.78 | |
| 12 | 0530-001 | FUSE BOX-ASSY | 1 | $33.95 | |
| 15 | 0411-042 | DECAL,FUSE BLOCK | 1 | $1.95 | |
| 16 | 0630-057 | FUSE,10 AMP ATO | 1 | $8.95 | |
| 16 | 0630-058 | FUSE,15 AMP ATO | 1 | $8.21 | |
| 17 | 0623-121 | SCREW,MACH-PHTRH #10-32X3/4 Z&Y | 1 | $4.82 | |
| 18 | 0123-010 | NUT,EXPANSION 10-32 | 1 | $6.75 |
