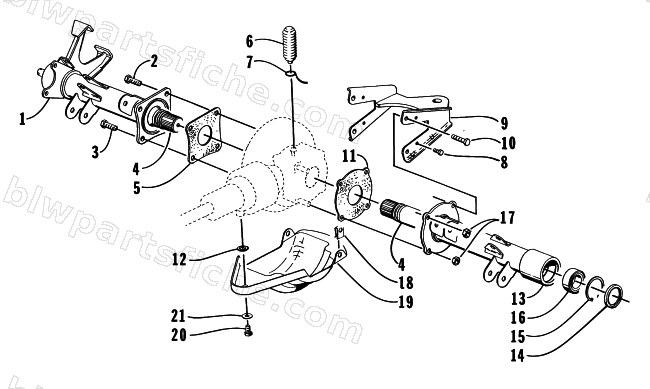

REAR AXLE ASSEMBLY
1996 BEARCAT 4X4
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0502-018 | HOUSING,AXLE-RH-WELDT-PAINTED | 1 | $596.95 | |
| 2 | 8409-030 | SCREW,CAP-HFH M10X1.25X30 CL10.9 Z&Y | 1 | $2.47 | |
| 3 | 8409-025 | SCREW,CAP-HFH M10X1.25X25 CL10.9 Z&Y | 1 | $1.50 | |
| 4 | 0502-264 | KIT,AXLE-DRIVE-RR | 1 | $341.95 | |
| 5 | 0402-139 | GASKET,RR AXLE -SQUARE | 1 | $12.95 | |
| 7 | 0123-811 | TIE,CABLE-4 INCH PLT1M | 1 | $0.26 | |
| 8 | 8408-616 | SCREW,CAP-HFH M6X1.0X16 CL8.8 Z&Y | 1 | $0.54 | |
| 9 | 0506-135 | TRAILER HITCH-BLACK | 1 | $36.95 | |
| 10 | 8408-840 | SCREW,CAP-HFH M8X1.25X40 CL8.8 Z&Y | 1 | $1.23 | |
| 11 | 0402-138 | GASKET,RR AXLE-ROUND | 1 | $3.95 | |
| 12 | 0423-101 | SCREW,BODY-6MM | 1 | $2.06 | |
| 13 | 0502-631 | HOUSING,AXLE-LH-BLACK | 1 | $300.95 | |
| 14 | 0402-068 | SEAL,38MMX50MMX7MM-DBL LIP | 1 | $4.26 | |
| 15 | 0423-033 | C-CLIP,INR (DHO 50) | 1 | $3.44 | |
| 16 | 0402-003 | BEARING,WHEEL HUB-RR (ATV-BB-1) | 1 | $63.95 | |
| 18 | 0423-031 | NUT,SPEED M6 X 1.0 U-TYPE | 1 | $0.95 | |
| 19 | 0406-097 | PANEL,RR GEAR CASE | 1 | $26.95 | |
| 20 | 8408-820 | SCREW,CAP-HFH M8X1.25X20 CL8.8 Z&Y | 1 | $0.68 | |
| 21 | 8050-252 | WASHER,FLAT- 5/16 X .875 X .063 Z&Y | 1 | $0.68 |
