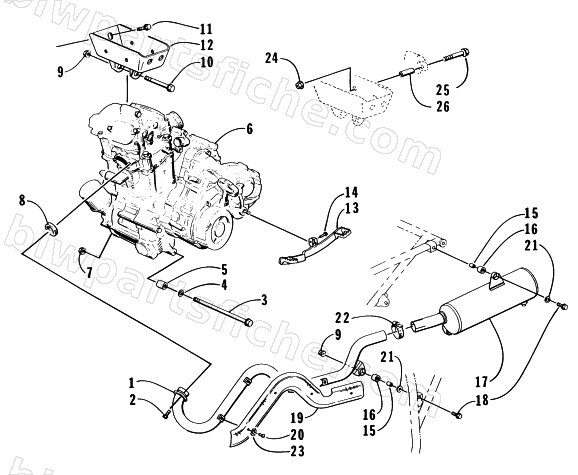

ENGINE AND EXHAUST
1996 BEARCAT 4X4
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0512-001 | PIPE,EXHAUST-WELD'T-PAINTED | 1 | $299.95 | |
| 2 | 8408-820 | SCREW,CAP-HFH M8X1.25X20 CL8.8 Z&Y | 1 | $0.68 | |
| 3 | 3423-009 | BOLT, 10X215 | 1 | $10.97 | |
| 4 | 0423-050 | WASHER, MOTOR MOUNT | 1 | $2.95 | |
| 5 | 1423-025 | SPACER,ENGINE MOUNT | 1 | $10.97 | |
| 6 | 0462-006 | ENGINE,98A4A (FROM 0463-001) | 1 | $4,696.95 | |
| 7 | 8428-002 | NUT,HEX FLG- CLINCH LOCK- M10-1.25 Z&Y | 1 | $5.09 | |
| 8 | 0412-007 | SEAL,EXHAUST PIPE | 1 | $17.87 | |
| 10 | 8408-860 | SCREW,CAP-HFH M8X1.25X60 CL8.8 Z&Y | 1 | $1.37 | |
| 11 | 8408-020 | SCREW,CAP-HFH M10X1.25X20 CL8.8 Z&Y | 1 | $3.16 | |
| 12 | 0506-083 | BRKT,UPR MTR-CTR WELD'T(BLACK) | 1 | $37.95 | |
| 13 | 0502-084 | LEVER,FOOTSHIFT-WELD'T(BLACK) | 1 | $79.95 | |
| 14 | 8408-620 | SCREW,CAP-HFH M6X1.0X20 CL8.8 Z&Y | 1 | $1.37 | |
| 15 | 0412-003 | SPACER,EXHAUST MOUNT 8MM | 1 | $20.63 | |
| 16 | 0412-004 | BUSHING,RUBBER EXHAUST MOUNT 8MM | 1 | $10.97 | |
| 17 | 0512-161 | MUFFLER-BLACK (0412-156) | 1 | $1,018.95 | |
| 18 | 8408-830 | SCREW,CAP-HFH M8X1.25X30 CL8.8 Z&Y | 1 | $0.95 | |
| 19 | 0406-224 | COVER,EXHAUST PIPE | 1 | $84.95 | |
| 20 | 8477-610 | SCREW,MACH-TSTRH M6X1.0X10 Z&BLK | 1 | $0.68 | |
| 21 | 8050-252 | WASHER,FLAT- 5/16 X .875 X .063 Z&Y | 1 | $0.68 | |
| 22 | 0214-015 | CLAMP,HOSE-#16/#17 | 1 | $2.19 | |
| 23 | 8053-213 | R/B 8053-212 | 1 | $0.65 | |
| 24 | 8424-602 | NUT,HEX-FLG M6X1.0 CL8 Z&Y | 1 | $0.26 | |
| 25 | 8408-640 | SCREW,CAP-HFH M6X1.0X40 CL8.8 Z&Y | 1 | $1.50 | |
| 26 | 0107-630 | SPACER,FUEL PUMP | 1 | $11.95 |
